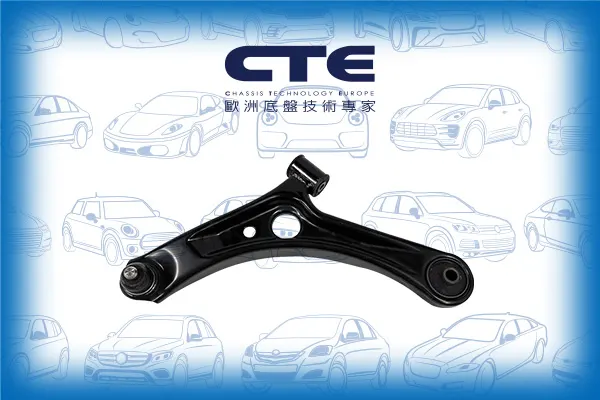

CS-716L
| Designation | Control Arm |
| Position | FRONT LOWER LH |
| OE No. | 1A05-34-350 / 1A05-34-350A / 1A05-34-350B / 1A09-34-350 / 45202-58J00 / 45202-58J01 / 45202-58J10 / 54530-4A00A / 54530-4A00B / 54530-4A00C / 54530-4A00F |
| Length | 354 mm |
| Width | 325.6 mm |
| Height | 44.9 mm |
| Net Weight | 2.25 kg |
| CTE No. | DESIGNATION | POSITION | OE NO. | |
|---|---|---|---|---|
 |
CBH07001 | FRONT LOWER ARM INNER | 009208989 009212533 09208989 09212533 09319-10030 09319-10030-000 09319M10002 09319M10030 09319M10030000 09319M10030-000 45261-77A00 45261-77A00-000 45261-77A10 45261-77A10-000 45261-84E00 4526184E00000 45261A-78B00 47 03 866 47 06 664 9208989 9212533 963 |
|
 |
CBH07003 | FRONT LOWER ARM REAR | 45540-60B01 45540-60B01-000 45540-60B02 45540-60B02-000 45540-60E00 45540-60E00-000 |
|
 |

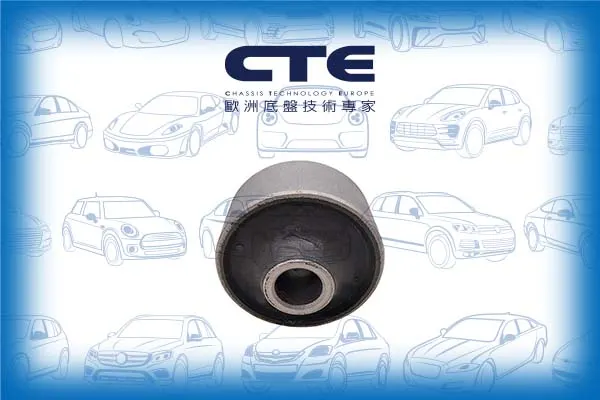

CBH07010 | FRONT LOWER ARM REAR | 1A05-34-350 1A05-34-350A 1A05-34-350B 1A09-34-350 1A11-34-300 1A11-34-300A 1A11-34-300B 1A15-34-300 45201-58J00 45201-58J01 45201-58J10 45201-85K11 45202-58J00 45202-58J01 45202-58J10 45202-85K11 54529-4A00A 54529-4A00B 54529-4A00C 54529-4A00F 54530-4A00A |
|
 |

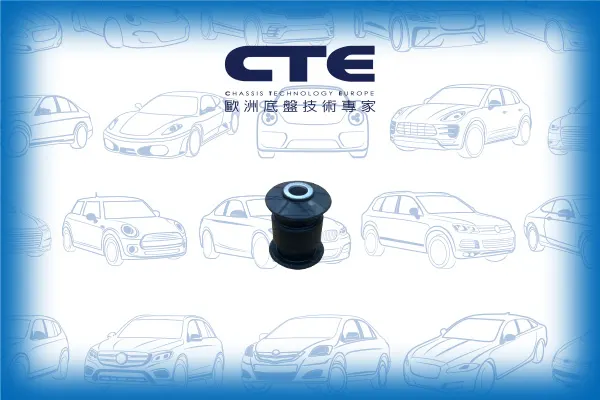

CBH07023 | FRONT LOWER ARM INNER | 1A05-34-350 1A05-34-350A 1A05-34-350B 1A09-34-350 1A11-34-300 1A11-34-300A 1A11-34-300B 1A15-34-300 45201-58J00 45201-58J01 45201-58J10 45202-58J00 45202-58J01 45202-58J10 54529-4A00A 54529-4A00B 54529-4A00C 54529-4A00F 54530-4A00A 54530-4A00B 54530-4A00C |
|
 |
CBH15022 | FRONT LOWER ARM INNER | 009210270 009212530 009214826 09210270 09212530 09214826 45200-83E00 45200-83E00-000 45200-84E00 45200-84E00-000 45200-85E00 4705742 4706665 4707280 9210270 9212530 9214826 |
|
 |

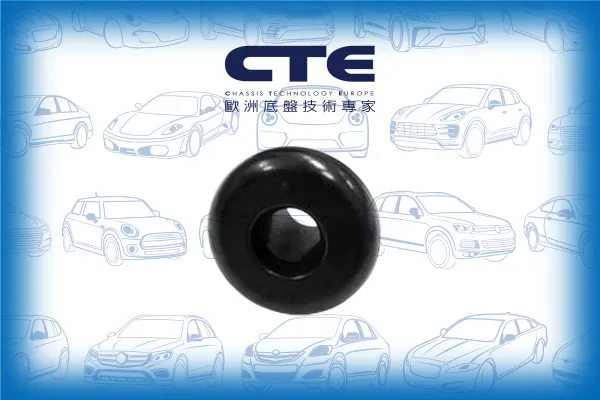

CBH15023 | FRONT LOWER ARM OUTER | 009205432 009209350 009209466 09205432 09209350 09209466 42451-76G00 42451-76G00-000 42451-M76G00 47 05 409 9205432 9209350 9209466 |
|
 |
CS-1513 | FRONT LOWER LH/ RH | 009210270 009212530 009214826 09210270 09212530 09214826 45200-83E00 45200-83E00-000 45200-84E00 45200-84E00-000 45200-85E00 4705742 4706665 4707 280 9210270 9212530 9214826 |
|
 |
CS-1514 | FRONT LOWER LH/ RH | 009208987 009217259 09208987 09217259 1A07-34-300A 45200-75F00 45200-75F00-000 45200-75F10 45200-75F20 45200-75F20-000 45200-75F21 45200-75F21-000 4705172 4708233 9208987 9217259 |
|
 |
CS-701 | FRONT LOWER LH/ RH | 1AY0-34-300 1YA1-34-300 45200-50500 45200-50E00 45200-69D00 45200-69DV0 45200-69DV1 45200-76G10 45200-76G20 45200-76G21 45200-78000 45200-78002 45200-84000 45200-84001 45200-M50E00 45200-M50E20 45200-M50E30 45200-M50E40 45200-M50E41 45200-M79F00 45200-M79 |
|
 |
CS-716L | FRONT LOWER LH | 1A05-34-350 1A05-34-350A 1A05-34-350B 1A09-34-350 45202-58J00 45202-58J01 45202-58J10 54530-4A00A 54530-4A00B 54530-4A00C 54530-4A00F |
|
 |

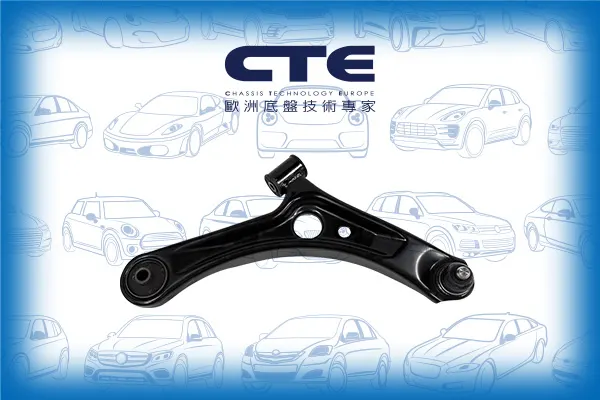

CS-716R | FRONT LOWER RH | 1A11-34-300 1A11-34-300A 1A11-34-300B 1A15-34-300 45201-58J00 45201-58J01 45201-58J10 54529-4A00A 54529-4A00B 54529-4A00C 54529-4A00F |
|
 |
CSL07003 | FRONT (A= 86MM) | 46630-60B00 46630-60B00-000 46630-60B01 46630-60B01-000 46630-60B10 46630-60G00 54618-50A00 |
| Model (Year) |
|---|
|
WAGON R (MH21, MH22) | KARIMUN ESTILO |
