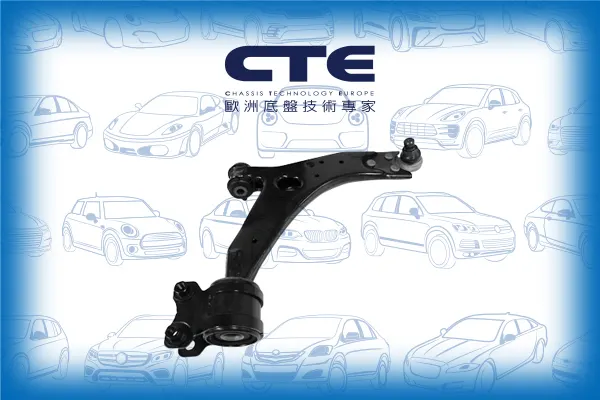

CS-364R
| Designation | Control Arm |
| Position | FRONT LOWER RH |
| OE No. | 1585054 / 9M5Y 3A423 BA |
| Length | 380.5 mm |
| Width | 454.5 mm |
| Height | 102.6 mm |
| Net Weight | 4.7 kg |
| CTE No. | DESIGNATION | POSITION | OE NO. | |
|---|---|---|---|---|
 |
CBH03020 | REAR LINK INNER/ OUTER | 6784590 6829045 93BB-5K653-AB |
|
 |
CBH03048 | REAR LINK | 1061668 1100983 1105524 1231455 1251941 1253734 13000384 13001121 30683067 3M51-5K653-AA 3M51-5K653-AB 3M51-5K653-AC 3M51-5K743-AC 98AG-5K743-AE 98AG-5K743-AF BBP3-28-500A BP4K-28-500A BP4K-28-500B BP4K-28-500C BP4K-28-500D BP4K-28-500E C236-28-500 C236-2 |
|
 |
CBH03092 | FRONT LOWER ARM REAR | 1502084 8V41-3A262-AB |
|
 |
CBH17035 | FRONT LOWER ARM REAR | ||
 |
CBH17042 | FRONT LOWER ARM REAR | ||
 |
CBJ03015A | FRONT LOWER LH/ RH (B= 18 MM) | 1234382 1679384 3M51-3395-AA 3M51-3395-BB 3M51-3K209-AA ME3M5J-3395-AA |
|
 |
CBJ03017A | FRONT LOWER LH/ RH (B= 21 MM) | 1470387 1679388 30760279 30760280 31201180 31201181 31262037 31262039 3M513K209BA ME4M5J-3395-AA |
|
 |

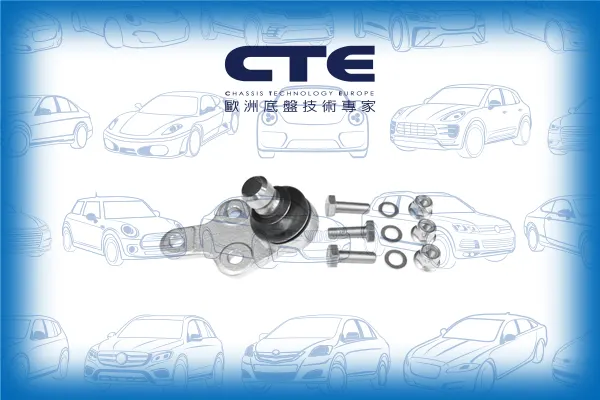

CBJ03021A | FRONT LOWER LH/RH | 1585054 1585059 9M5Y 3A423 BA 9M5Y 3A424 BA |
|
 |
CS-341 | REAR AXLE LH/ RH | 1061668 1100983 1105524 1223958 1231455 1253735 1388327 1500111 30666300 30683067 3M51-5K743-AC 3M51-5K743-AD 3N61-5K743-BB 8646064 8V41-5K743-AA 98AG-5K743-AF BBP3-28-500A BP4K-28-500A BP4K-28-500B BP4K-28-500C BP4K-28-500D BP4K-28-500E C236-28-500 C236- |
|
 |
CS-347 | REAR UPPER LH/ RH | 1061659 1061662 1073252 1100977 1113289 1136072 1223897 1231457 1253737 1317609 1329730 1484033 1503993 1517403 1524422 1752736 1M515500AA 1M515500AB 1M51-5500-AC 2512873 3093462 31201356 31212503 31277305 3M515500BA 74 85 104 224 85104224 8671921 8M51-55 |
|
 |
CS-355L | FRONT LOWER LH (D= 18MM) | 1420858 1488111 1570285 4M51 3A424 AD 4M51 3A424 AE 4M51 3A424 AF |
|
 |
CS-355R | FRONT LOWER RH (D= 18MM) | 1420795 1488110 1570284 4M51 3A423 AD 4M51 3A423 AE 4M51 3A423 AF |
|
 |
CS-361 | REAR LOWER LH/ RH | 1223951 1231454 1253733 1335249 1548460 30639917 30666105 31277584 3M515K652AA 3M515K652AB 3M515K652AC 4M515K652CA 4M515K652CB 8646157 8646158 BBP3-28-300A BBP3-28-300B BBP3-28-300C BP4K-28-300A BP4K-28-300B BP4K-28-300C BP4K-28-300D BP4K-28-300E C236-28- |
|
 |

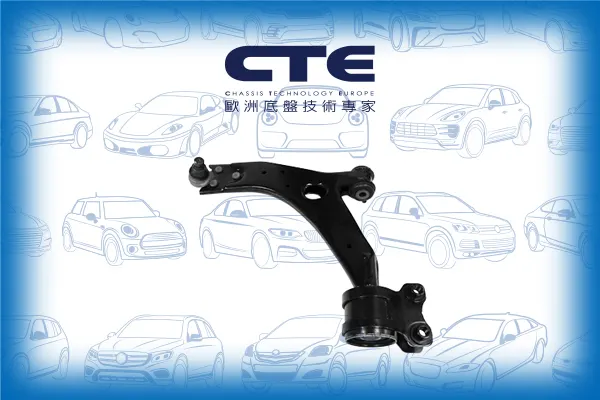

CS-364L | FRONT LOWER LH | 1585059 9M5Y 3A424 BA |
|
 |
CS-364R | FRONT LOWER RH | 1585054 9M5Y 3A423 BA |
|
 |
CSL03037 | REAR (A= 76MM) | 1223923 1231452 1253969 1304120 1310333 1335548 1469208 1734686 2408359 3M51 5C486 BE 3M515C486BC 3M515C486BD 3M515C486BF 3M5J-5C486-BF BP4K-28-170A BP4K-28-170C BP4K-28-170D BP4K-28-170E BP4K-28-170F BP4K-28-170G BP4K-28-170H |
|
 |
CSL03038 | FRONT (A= 306MM) | 1223792 1230909 1686594 1762149 1851900 31277652 31340273 3M513B438AA 3M513B438AB 8623576 AV61-3B438-AA AV61-3B438-BA B37F-34-170A BP4K-34-170 BP4K-34-170A BP4K-34-170B BP4K-34-170C BP4K-34-170D |
| Model (Year) |
|---|
|
FOCUS II (DA_, HCP, DP) |
