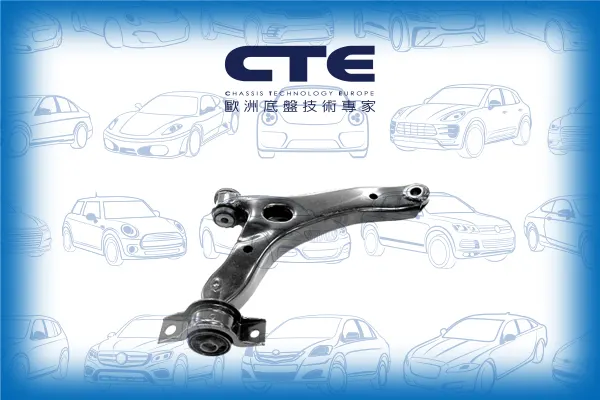

CS-350R
| Designation | Control Arm |
| Position | FRONT LOWER RH |
| OE No. | 1332454 / 1355048 / 2T14-3042-BF / 2T14-3042-BG / 2T14-3042-BH / 2T14-3042-BJ / 4366973 / 4371925 / 4539871 / 4T16-3042-AA / W12T1043042BG |
| Length | 456 mm |
| Width | 372 mm |
| Height | 79 mm |
| Net Weight | 5.1 kg |
| CTE No. | DESIGNATION | POSITION | OE NO. | |
|---|---|---|---|---|
 |
CBH03056 | LOWER FRONT AXLE LEFT/RIGHT | 4131788 |
|
 |

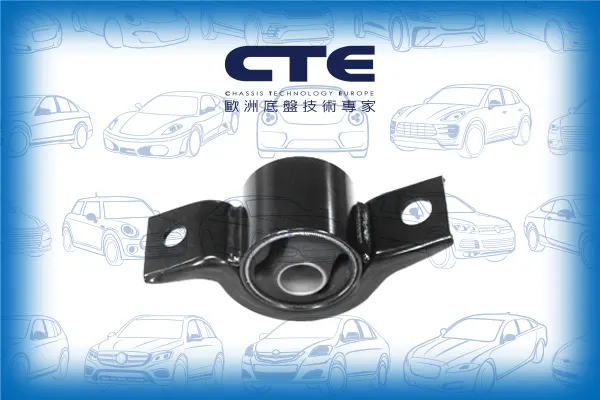

CBH03062 | FRONT LOWER ARM REAR | 1332454 1332455 1355048 1355050 2T14-3042-BF 2T14-3042-BG 2T14-3042-BH 2T14-3051-BF 2T14-3051-BG 2T14-3051-BH 4366973 4366974 4371925 4371926 4T16-3042-AA 4T16-3051-AA W12T1043042BG W12T1043051BG |
|
 |

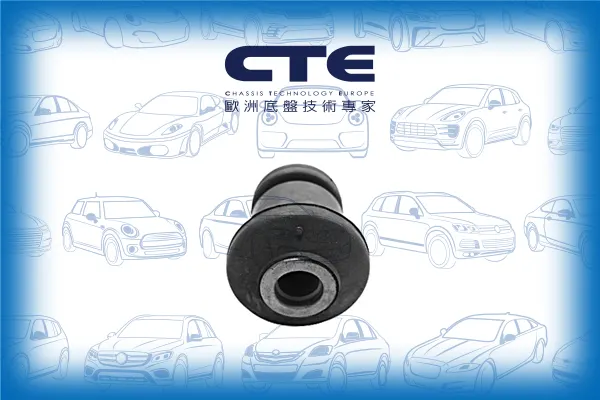

CBH03063 | FRONT LOWER ARM INNER | 1332454 1332455 1355048 1355050 2T14-3042-BF 2T14-3042-BG 2T14-3042-BH 2T14-3051-BF 2T14-3051-BG 2T14-3051-BH 2T14-3063-AA 4366973 4366974 4366976 4371925 4371926 4T16-3042-AA 4T16-3051-AA W12T1043042BG W12T1043051BG |
|
 |
CRE03046 | D= M14X2.0 , C= M14X1.5 | 1085520 3043523 3707333 4083655 98AG-3L519-AA XS4C-3280-AB XS4C-3280-BA YS4C-3200-BA |
|
 |
CRE03050L | LH D= M16X1.5 , C= M16X1.5 | 1370709 4059923 4602028 6C11-3L519-AA YC15-3L519-AA YC15-3L519-AB |
|
 |
CRE03050R | RH D= M16X1.5 , C= M20X1.5 | 1370710 4059924 4577976 6C11-3L519-BA YC15-3L519-BA YC15-3L519-BB |
|
 |

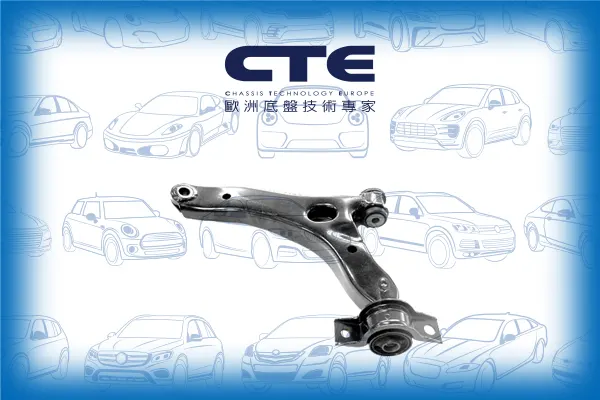

CS-350L | FRONT LOWER LH | 1332455 1355050 2T14-3051-BF 2T14-3051-BG 2T14-3051-BH 4366974 4371926 4T16-3051-AA W12T1043051BG |
|
 |
CS-350R | FRONT LOWER RH | 1332454 1355048 2T14-3042-BF 2T14-3042-BG 2T14-3042-BH 2T14-3042-BJ 4366973 4371925 4539871 4T16-3042-AA W12T1043042BG |
|
 |

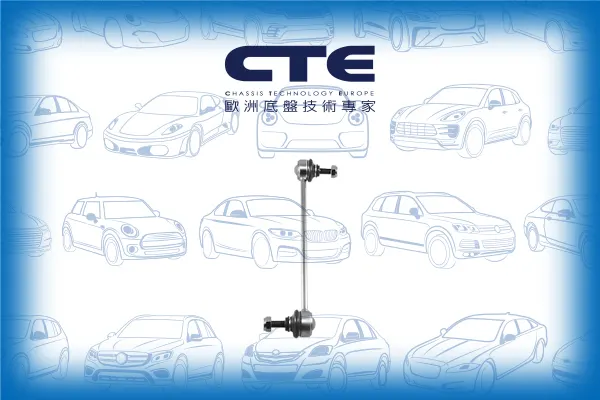

CSL03051 | FRONT (A= 238MM) | 1332453 1525572 2T14-3B438-BA 2T14-3B438-BB 4367012 7T163B438AA 95947829 |
|
 |

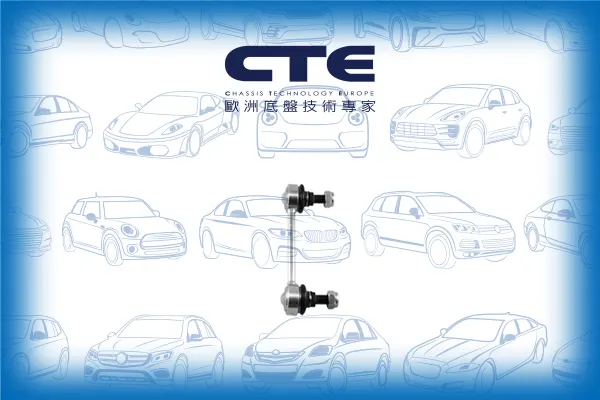

CSL03053 | REAR (A= 133MM) | 1332463 2T14-5C486-AB 2T14-5C486-AC 2T14-5C486-AD 2T14-5C486-AE 2T14-5C486-AF 2T14-5C486-AG 4367076 4414780 4420546 4436609 4548398 |
| Model (Year) |
|---|
|
TOURNEO CONNECT | TRANSIT CONNECT TRANSIT CONNECT (P65_, P70_, P80_) |
