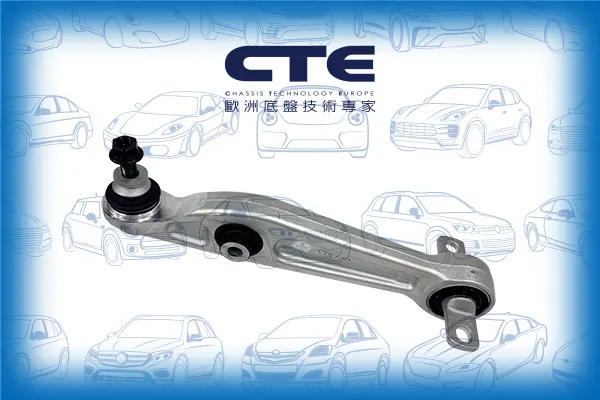

CS-3507R
| Designation | Control Arm |
| Position | FRONT LOWER RH |
| OE No. | 1044356-00-C / 1044359-00-A / 1288359-00-B |
| Length | 447 mm |
| Width | 156 mm |
| Height | 103 mm |
| Net Weight | 2.5 kg |
| CTE No. | DESIGNATION | POSITION | OE NO. | |
|---|---|---|---|---|
 |
CBH35002 | FRONT LOWER ARM OUTER | 1044341-00-C 1044341-00-D 1188341-00-B 1188341-00-C |
|
 |
CBH35003 | FRONT LOWER ARM INNER | 1044341-00-C 1044341-00-D 1188341-00-B 1188341-00-C |
|
 |
CBH35004 | FRONT LOWER ARM INNER | 1044351-00-C 1044354-00-A 1044356-00-C 1044359-00-A 1288354-00-B 1288354-99-B 1288359-00-B |
|
 |
CBH35005 | FRONT UPPER ARM INNER | 1044321-00-F 1044321-00-G 1044321-00-H 1044321-00-J 1044326-00-F 1044326-00-G 1044326-00-H 1044326-00-J |
|
 |
COS35004 | FRONT | ||
 |
CS-3506 | FRONT LOWER LH/RH | 1044341-00-C 1044341-00-D 1044341-99-D |
|
 |
CS-3507L | FRONT LOWER LH | 1044351-00-C 1044354-00-A 1288354-00-B 1288354-99-B |
|
 |
CS-3507R | FRONT LOWER RH | 1044356-00-C 1044359-00-A 1288359-00-B |
|
 |
CS-3508L | FRONT UPPER LH | 1044321-00-F 1044321-00-G 1044321-00-H 1044321-00-J 1288321-00-A |
|
 |
CS-3508R | FRONT UPPER RH | 1044326-00-F 1044326-00-G 1044326-00-H 1044326-00-J 1288326-00-A |
|
 |
CS-3509L | FRONT UPPER LH | ||
 |
CS-3509R | FRONT UPPER RH | ||
 |
CS-3510L | FRONT UPPER LH | ||
 |
CS-3510R | FRONT UPPER RH | ||
 |
CSL35009L | FRONT AXLE LH | 1044391-00-D 1188391-00-B |
|
 |
CSL35009R | FRONT AXLE RH | 1044396-00-D 1188396-00-B |
|
 |
CSL35010L | REAR AXLE LH | 1044491-00-E |
|
 |
CSL35010R | REAR AXLE RH | 1044496-00-E |
| Model (Year) |
|---|
|
MODEL 3 (5YJ3) MODEL Y (5YJY) |
