CS-236R
| Designation | Control Arm |
| Position | FRONT LOWER RH (W/ BJ) |
| OE No. | 48068-05010 / 48068-20260 / CS-216R+CBJ02012A |
| Length | 435 mm |
| Width | 393 mm |
| Height | 106 mm |
| Net Weight | 4.2 kg |
(_T19_) Vehicle Production in Europe;Construction year to 01.1996
| CTE No. | DESIGNATION | POSITION | OE NO. | |
|---|---|---|---|---|
 |
CBH02011 | FRONT LOWER ARM REAR | 48655-05011 48655-20140 |
|
 |
CBH02012 | FRONT LOWER ARM INNER | 48654-20150 48654-20160 |
|
 |
CBH02022 | FRONT LOWER ARM REAR | 48061-05010 48655-20220 |
|
 |
CBH02023 | FRONT LOWER ARM INNER | 48068-05050 48068-20220 48068-20221 48069-05050 48069-20220 48069-20221 48654-05040 |
|
 |
CBJ02012A | FRONT LOWER LH/RH | 43330-02020 43330-02040 43330-05020 43330-09030 43330-09040 43330-09060 43330-09130 43330-19095 43330-26265 43330-29045 43330-29046 43330-29047 43330-29055 43330-29056 43330-29065 43330-29265 43330-29315 43330-29325 43330-29375 43340-29025 43340-29026 433 |
|
 |

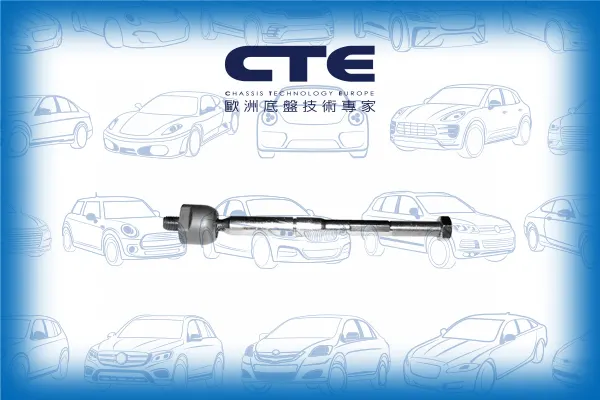

CRE02033 | D= M15X1.5 , C= M14X1.5 | 45503-05010 45503-29475 45503-990DL |
|
 |
CS-216L | FRONT LOWER LH | 48069-05010 48069-20260 |
|
 |
CS-216R | FRONT LOWER RH | 48068-05010 48068-20260 |
|
 |

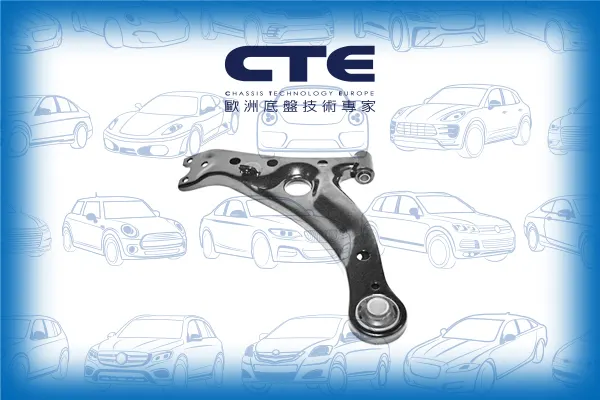

CS-228L | FRONT LOWER LH | 48069-05060 48069-20220 48069-20221 |
|
 |

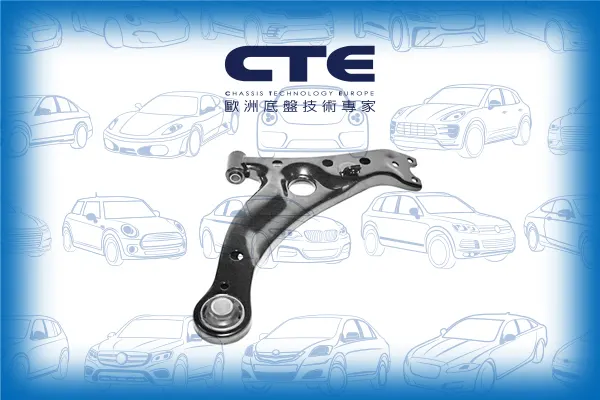

CS-228R | FRONT LOWER RH | 48068-05060 48068-20220 48068-20221 |
|
 |
CS-236L | FRONT LOWER LH (W/ BJ) | 48069-05010 48069-20260 CS-216L+CBJ02012A |
|
 |
CS-236R | FRONT LOWER RH (W/ BJ) | 48068-05010 48068-20260 CS-216R+CBJ02012A |
|
 |
CSL02031 | FRONT (A= 70MM) | 48820-20010 |
|
 |

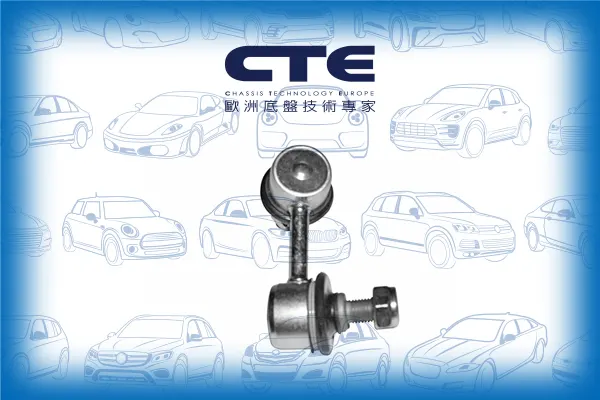

CSL02033 | REAR (A= 104MM) | 48830-12060 48830-20010 |
|
 |
CSL02035 | REAR AXLE LH/RH (A= 104MM) | 48830-02010 48830-05011 48830-12060 48830-20010 48830-32010 48830-32020 |
|
 |
CSL02036L | FRONT LH (A= 70MM) | 48810-05010 48810-05011 48810-05012 48810-20020 48810-44010 |
|
 |
CSL02036R | FRONT RH (A= 70MM) | 48820-05011 48820-05012 48820-20040 48820-44010 |
| Model (Year) |
|---|
|
CALDINA Estate (_T19_) CARINA E VI (_T19_) CARINA E VI Saloon (_T19_) CARINA E VI Sportswagon (_T19_) CORONA Estate (_T19_) CORONA Hatchback (_T19_) CORONA Saloon (_T19_) CORONA Saloon (_T21_) | CORONA PREMIO |
