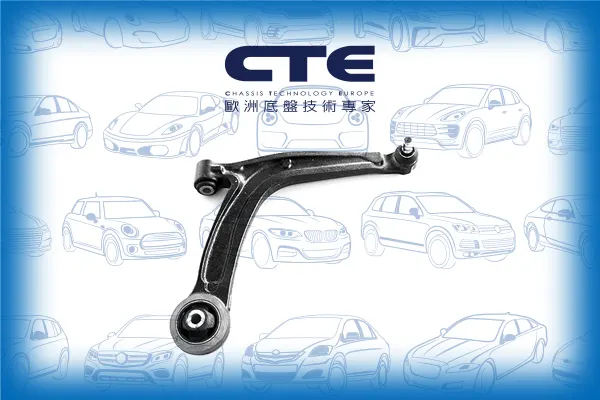

CS-2212R
| Designation | Control Arm |
| Position | FRONT LOWER RH |
| OE No. | 1540246 / 1548515 / 1580515 / 1639575 / 2014015 / 50709580 / 50710620 / 51857022 / 52045068 / 9S51-3078-BA / 9S51-3078-BB / 9S51-3078-BC / FS51-3078-BA |
| Length | 353.2 mm |
| Width | 403.5 mm |
| Height | 80 mm |
| Net Weight | 3.86 kg |
FIAT 500 (312) Construction year to 08.2016
(500C) (595C) (695C) Construction year to 01.2016
(500C) (595C) (695C) Construction year to 01.2016
| CTE No. | DESIGNATION | POSITION | OE NO. | |
|---|---|---|---|---|
 |

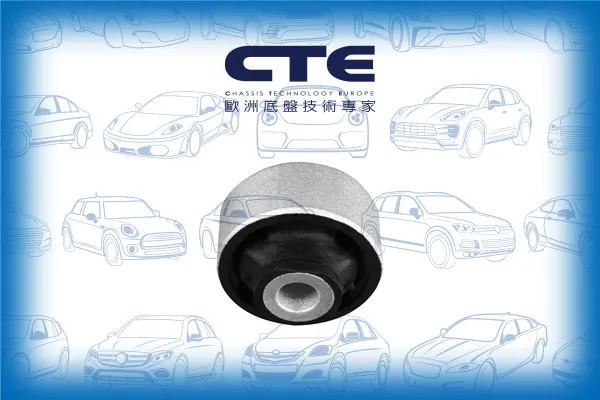

CBH22020 | FRONT LOWER ARM REAR | 51896150 |
|
 |

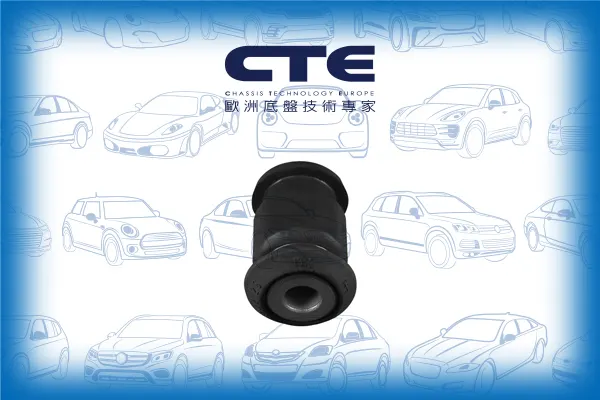

CBH22021 | FRONT LOWER ARM INNER | 50700198 |
|
 |

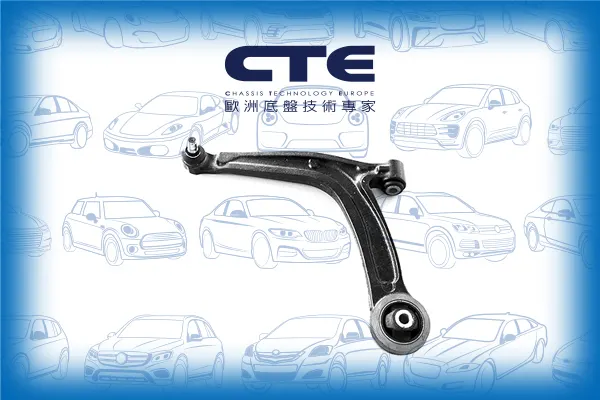

CS-2212L | FRONT LOWER LH | 1540244 1580514 1639574 2014011 50709579 50710621 51857021 51860383 52045069 9S51-3078-AA 9S51-3078-AB 9S51-3078-AC FS51-3078-AA |
|
 |
CS-2212R | FRONT LOWER RH | 1540246 1548515 1580515 1639575 2014015 50709580 50710620 51857022 52045068 9S51-3078-BA 9S51-3078-BB 9S51-3078-BC FS51-3078-BA |
|
 |
CSL22002 | FRONT (A= 287MM) | 0051801136 0052148016 1540281 1580517 2486293 50700464 50700941 51795269 51801136 51909775 52006100 52121199 52148016 52189859 9S51-5K484-AA 9S51-5K484-AB 9S51-5K484-AC |
|
 |
CTE22001L | FRONT AXLE LH (C= M12X1.5) | 1543820 1546259 1935084 77362507 77367001 9S513270AA 9S51-3270-AB 9S51-3F667-AA |
|
 |
CTE22001R | FRONT AXLE RH (C= M12X1.5) | 1543821 1546260 1935087 77362508 77367002 9S513270BA 9S51-3270-BB 9S51-3F667-BA |
| Model (Year) |
|---|
|
500 / 595 / 695 500C / 595C / 695C |
| Model (Year) |
|---|
|
500 (312_) 500 C (312_) 500L (351_, 352_) |
| Model (Year) |
|---|
|
KA (RU8) |
