CS-1939L
| Designation | Control Arm |
| Position | REAR UPPER LH |
| OE No. | 1K0 505 223E / 1K0 505 223F / 1K0 505 223H / 1K0 505 223K / 1T0 505 223A / 1T0 505 223D / 1T0 505 223F |
| Length | 451 mm |
| Width | 169 mm |
| Height | 63.8 mm |
| Net Weight | 1.75 kg |
AUDI A1 (8X1
8XK) Model Year to 2014
VW BEETLE (5C1
5C2
5C7
5C8) Model Year from 2017
VW JETTA IV (162
163
AV3
AV2) for PR number 0N4
PASSAT B7 (A32
A33) Construction Year to 10.2012
8XK) Model Year to 2014
VW BEETLE (5C1
5C2
5C7
5C8) Model Year from 2017
VW JETTA IV (162
163
AV3
AV2) for PR number 0N4
PASSAT B7 (A32
A33) Construction Year to 10.2012
| CTE No. | DESIGNATION | POSITION | OE NO. | |
|---|---|---|---|---|
 |
CBH19023 | REAR ARM | 1K0 505 553 1K0 505 553A 1KD 505 553 3C0 505 553 |
|
 |
CBH19028 | REAR AXLE | 1K0 505 541B 1K0 505 541C 1K0 505 541D 3C0 505 223E 3C0 505 541 5Q0 505 223 5Q0 505 223D 5Q0 505 224 5Q0 505 224D 5Q0 505 541A 5QM 505 223 5QM 505 224 6R0 505 223 6R0 505 224 |
|
 |

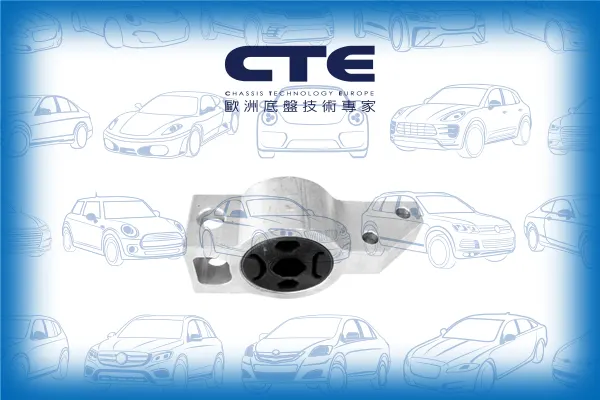

CBH20009 | FRONT LOWER ARM REAR | 3C0 199 231A 3C0 199 231B 3C0 199 231D 3C0 199 231E 3C0 199 231F |
|
 |
CBH20017 | FRONT LOWER ARM INNER | 1K0 407 182 1K0 407 182A 1K0 407 182F 1KD 407 182 5Q0 407 182 5Q0 407 182A |
|
 |
CBJ20008LA | FRONT LOWER LH | 1K0 407 365B 1K0 407 365C 1K0 407 365E 1KD 407 365 5Q0 073 365A 5Q0 407 365A 5WA 407 365 |
|
 |
CBJ20008RA | FRONT LOWER RH | 1K0 407 366B 1K0 407 366C 1K0 407 366E 1KD 407 366 5Q0 073 366A 5Q0 407 366A 5WA 407 366 |
|
 |
CRE20013 | D= M16X1.5 , C= M16X1.5 | 1K0 423 810A 1K0 423 810E 3C0 423 810A |
|
 |
CS-1932 | REAR LOWER LH/ RH | 1K0 505 311 1K0 505 311 AA 1K0 505 311 H 1K0 505 311 J 1K0 505 311 R 1K0 505 311 S 1K0 505 311 T 1K0 505 311AB |
|
 |
CS-1939L | REAR UPPER LH | 1K0 505 223E 1K0 505 223F 1K0 505 223H 1K0 505 223K 1T0 505 223A 1T0 505 223D 1T0 505 223F |
|
 |
CS-1939R | REAR UPPER RH | 1K0 505 224E 1K0 505 224F 1K0 505 224H 1K0 505 224K 1T0 505 224A 1T0 505 224D 1T0 505 224F |
|
 |

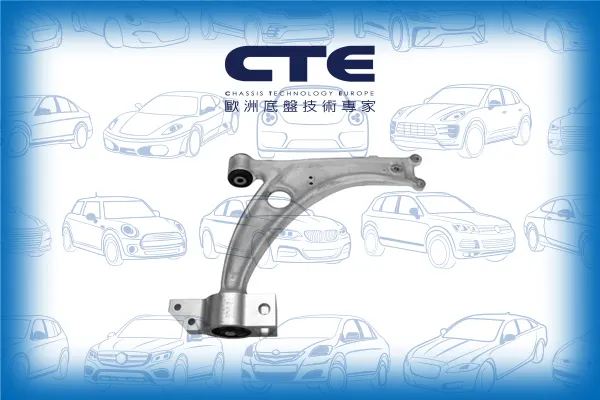

CS-2022 | FRONT LOWER LH/ RH | 3C0 407 151A 3C0 407 151B 3C0 407 151E 3C0 407 151G 3C0 407 151H 5N0 407 151B |
|
 |

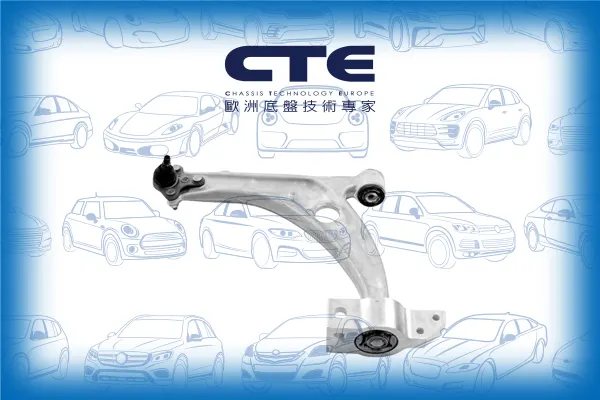

CS-2023L | FRONT LOWER LH | 3C0 407 151A 3C0 407 365A CS-2022+CBJ20007LA |
|
 |

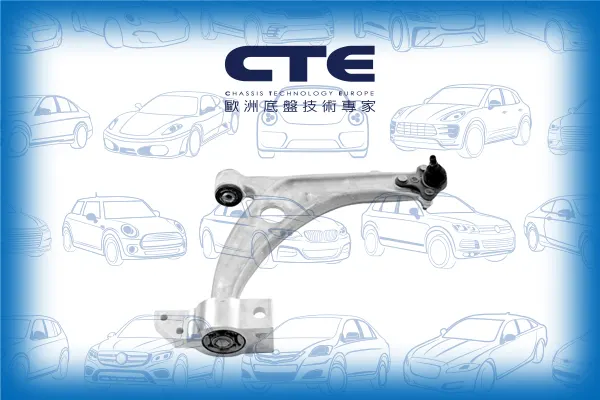

CS-2023R | FRONT LOWER RH | 3C0 407 151A 3C0 407 366A CS-2022+CBJ20007RA |
|
 |
CS-2026 | REAR UPPER LH/ RH | 1K0 505 323D 1K0 505 323G 1K0 505 323H 1K0 505 323M 1K0 505 323N 1K0 505 323P 5Q0 505 323C 5Q0 505 323D |
|
 |
CS-2027L | REAR LOWER LH | 1K0 501 529E 1K0 501 529F 7N0 501 529 |
|
 |
CS-2027R | REAR LOWER RH | 1K0 501 530B 1K0 501 530C 7N0 501 530 |
|
 |
CSL19021 | REAR AXLE LH/RH | 1K0 505 465AA 1K0 505 465C 1K0 505 465J 1K0 505 465K 1K0 505 465R 1KD 505 465A 1KD 505 465C |
|
 |
CSL20014 | FRONT (A= 334MM) | 1K0 411 315B 1K0 411 315D 1K0 411 315E 1K0 411 315G 1K0 411 315J 1K0 411 315K 1K0 411 315P 1K0 411 315R 1KD 411 315 1KD 411 315A 3QG 411 315A 5Q0 411 315 5Q0 411 315A 5Q0 411 315B 5QD 411 315 5QM 411 315 |
| Model (Year) |
|---|
|
A1 (8X1, 8XK) A3 (8P1) | A3 / S3 A3 Convertible (8P7) A3 Sportback (8PA) Q3 (8UB, 8UG) TT (8J3) TT Roadster (8J9) |
| Model (Year) |
|---|
|
ALTEA (5P1) ALTEA XL (5P5, 5P8) LEON (1P1) TOLEDO III (5P2) |
| Model (Year) |
|---|
|
OCTAVIA II (1Z3) OCTAVIA II Combi (1Z5) SUPERB II (3T4) SUPERB II Estate (3T5) YETI (5L) |
| Model (Year) |
|---|
|
BEETLE (5C1, 5C2) | BJALLA BEETLE Convertible (5C7, 5C8) EOS (1F7, 1F8) GOLF PLUS V (5M1, 521) GOLF V (1K1) GOLF V Variant (1K5) | BORA / JETTA GOLF VI (5K1) GOLF VI Convertible (517) GOLF VI Variant (AJ5) | JETTA JETTA III (1K2) JETTA IV (162, 163, AV3, AV2) PASSAT B7 (A32, A33) SCIROCCO III (137, 138) TOURAN (1T1, 1T2) TOURAN (1T3) | GOLF TOURAN |
