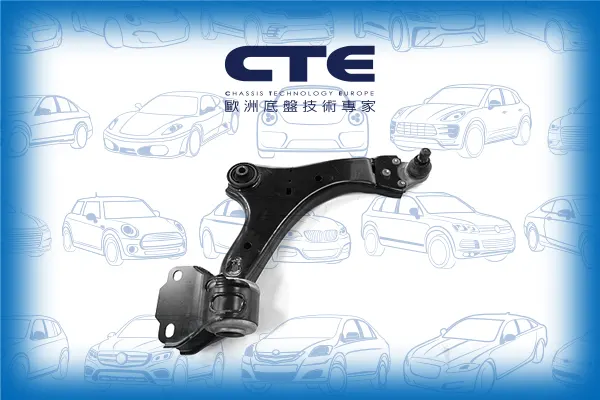

CS-1718R
| Designation | Control Arm |
| Position | FRONT LOWER RH |
| OE No. | 30683249 / 31202229 / 31277346 / 31317664 |
| Length | 513 mm |
| Width | 421 mm |
| Height | 118 mm |
| Net Weight | 6.6 kg |
| CTE No. | DESIGNATION | POSITION | OE NO. | |
|---|---|---|---|---|
 |
CBH03071 | REAR ARM | 6G91-5K743-VA 6G91-5K743-XA |
|
 |
CBH17041L | REAR AXEL LH | 1566837 1566838 1865033 2040702 31387280 31406337 31476221 6G91-5A969-FCJ 6G91-5K896-AA 6G91-5K896-AB TKA181351 |
|
 |
CBH17041R | REAR AXEL RH | 1566810 1566829 1566836 1566841 1865034 2040703 31277755 31277756 31387281 31406350 31476222 6G91-5A968-FCJ 6G91-5A968-FNJ 6G91-5A969-FNJ 6G91-5K896-BA 6G91-5K896-BB TKA181352 |
|
 |
CBJ17011A | FRONT LOWER LH/ RH | 30681487 30681488 30683248 30683249 31202228 31202229 31262475 31262476 31277345 31277346 31277525 31277526 31317663 31317664 31317665 31317666 7G9N-3395-DA |
|
 |
CRE17026 | D= M18X1.5 , C= M16X1.5 | 30776255 30776425 31406474 |
|
 |
CRE17028 | D= M18X1.5 , C= M16X1.5 | 1433271 1596574 30776250 31280002 31280658 31451035 6G913280AA 6G913280AB LR016869 |
|
 |

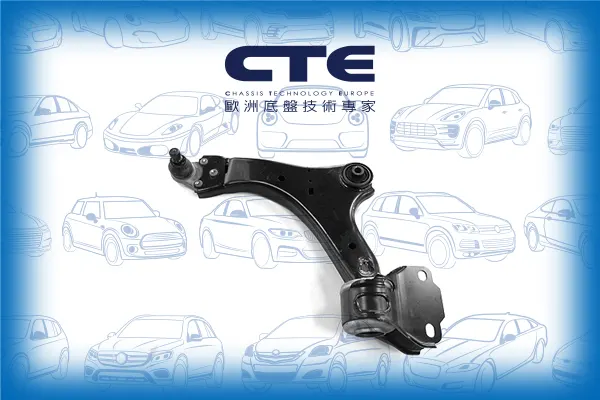

CS-1718L | FRONT LOWER LH | 30683248 31202228 31277345 31317663 |
|
 |
CS-1718R | FRONT LOWER RH | 30683249 31202229 31277346 31317664 |
|
 |
CS-356 | REAR LOWER LH/ RH | 1377449 1381443 1381843 1387628 1426770 1426770 S1 30666558 30666559 30676099 30676100 30736864 30736864 S1 30760069 31262127 31262127 S1 31262128 31262439 31262930 31262930 S1 31262931 31340354 6G91-5K743-VA 6G91-5K743-XA 6G91-5K743-XAA 6G91-5K743-XAB 6G |
|
 |
CSL03048 | REAR (A= 179MM) | 1377349 1377398 1377416 1425853 1502681 1783320 30736875 30736947 30736948 30760678 31429561 31451817 31476579 6G915C486XAA 6G915C486XAB 8V41-5C486-AA 8V4Z-5C486-A CV615C486AAB CV6Z-5C486-B |
|
 |
CSL17019 | FRONT (A= 300MM) | 1377849 1433294 30648461 31658608 6G9N-3B438-BA |
|
 |
CTE17015L | FRONT AXLE LH | 1433274 30776249 31280000 31302344 6G91-3290-AA LR002610 |
|
|
CTE17015R | FRONT AXLE RH | 1433273 30776248 31280001 31302345 6G91-3289-AA LR002609 |
| Model (Year) |
|---|
|
S60 II Cross Country (134) V60 I Cross Country (157) XC70 II (136) XC70 II VAN (136) |
