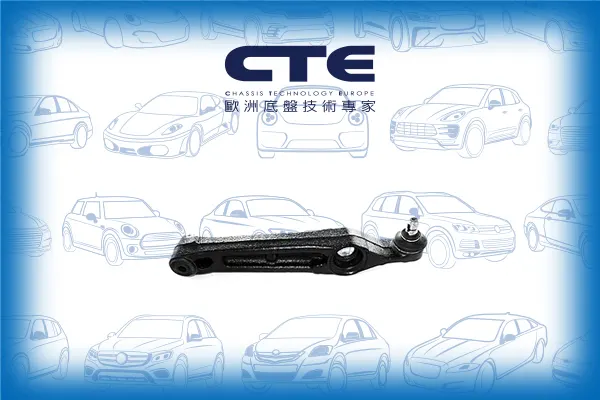

CS-1513
| Designation | Control Arm |
| Position | FRONT LOWER LH/ RH |
| OE No. | 009210270 / 009212530 / 009214826 / 09210270 / 09212530 / 09214826 / 45200-83E00 / 45200-83E00-000 / 45200-84E00 / 45200-84E00-000 / 45200-85E00 / 4705742 / 4706665 / 4707 280 / 9210270 / 9212530 / 9214826 |
| Length | 324 mm |
| Width | 52 mm |
| Height | 80 mm |
| Net Weight | 2.37 kg |
OPEL AGILA (F68) VIN from 1G075422
SUZUKI WAGON R Hatchback VIN from 140197
VAUXHALL AGILA Mk I (H00) VIN from 1G075422
SUZUKI WAGON R Hatchback VIN from 140197
VAUXHALL AGILA Mk I (H00) VIN from 1G075422
| CTE No. | DESIGNATION | POSITION | OE NO. | |
|---|---|---|---|---|
 |
CBH07001 | FRONT LOWER ARM INNER | 009208989 009212533 09208989 09212533 09319-10030 09319-10030-000 09319M10002 09319M10030 09319M10030000 09319M10030-000 45261-77A00 45261-77A00-000 45261-77A10 45261-77A10-000 45261-84E00 4526184E00000 45261A-78B00 47 03 866 47 06 664 9208989 9212533 963 |
|
 |
CBH15023 | FRONT LOWER ARM OUTER | 009205432 009209350 009209466 09205432 09209350 09209466 42451-76G00 42451-76G00-000 42451-M76G00 47 05 409 9205432 9209350 9209466 |
|
 |
CS-1513 | FRONT LOWER LH/ RH | 009210270 009212530 009214826 09210270 09212530 09214826 45200-83E00 45200-83E00-000 45200-84E00 45200-84E00-000 45200-85E00 4705742 4706665 4707 280 9210270 9212530 9214826 |
|
 |
CS-1514 | FRONT LOWER LH/ RH | 009208987 009217259 09208987 09217259 1A07-34-300A 45200-75F00 45200-75F00-000 45200-75F10 45200-75F20 45200-75F20-000 45200-75F21 45200-75F21-000 4705172 4708233 9208987 9217259 |
|
 |
CTE03009 | FRONT AXLE LH/ RH (C= M12X1.25) | 009204751 009210168 009210351 09204751 09210168 09210351 47 01 744 47 05 655 47 05 716 47 09 195 485204A00B 48810-60810 48810-60J00 48810-63J00 48810-83E00 48810-83E00-000 48810-83E01 48810-83E01-000 48810-83E02 48810-83E02-000 48810-84M00 48810-84M00-000 |
| Model (Year) |
|---|
|
AGILA A (H00) |
| Model (Year) |
|---|
|
WAGON R (MH21, MH22) | KARIMUN ESTILO WAGON R+ (MA) | WAGON R SOLIO |
| Model (Year) |
|---|
|
AGILA Mk I (A) (H00) |
