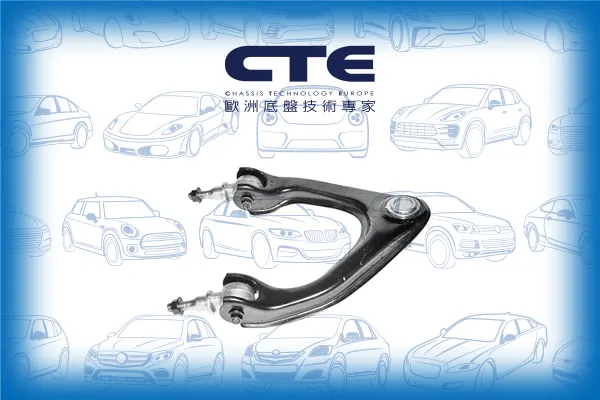

CS-139R
| Designation | Control Arm |
| Position | FRONT UPPER RH |
| OE No. | 51450-SS0-003 / 51450-SS0-A01 |
| Length | 335 mm |
| Width | 264 mm |
| Height | 81 mm |
| Net Weight | 1.8 kg |
| CTE No. | DESIGNATION | POSITION | OE NO. | |
|---|---|---|---|---|
 |
CBH01022 | FRONT LOWER ARM INNER | 51393-S0A-004 51393-S0A-014 51393-S1A-E01 51393-SL4-004 51393-SL5-003 51393-SL5-013 51393-SL9-013 51393-SM4-003 51393-SM4-013 51393-SM4-505 51393-SV1-A01 51393-SV1-E01 RBX100431 |
|
 |
CBH01031 | FRONT UPPER ARM INNER | 51450-SS0-003 51450-SS0-A01 51460-SS0-003 51460-SS0-A01 52390-S30-003 52400-S30-003 |
|
 |
CRE01016 | D= M14X1.5 , C= M14X1.5 | 53521-SL4-014 |
|
 |
CRE01021 | D= M14X1.5 , C= M14X1.25 | 53010-SS0-000 53010-SW5-000 53010-SW5-003 53010-SW5-003A |
|
 |

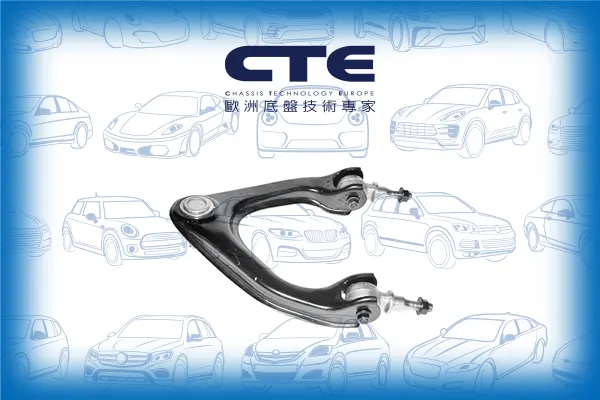

CS-139L | FRONT UPPER LH | 51460-SS0-003 51460-SS0-A01 |
|
 |
CS-139R | FRONT UPPER RH | 51450-SS0-003 51450-SS0-A01 |
|
 |

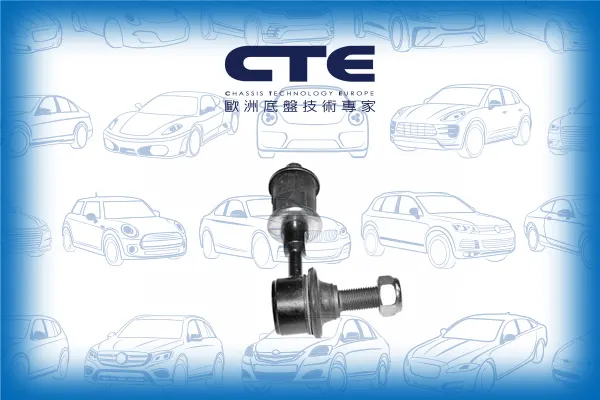

CSL01015 | FRONT (A=103MM) | 51320-SS0-003 |
| Model (Year) |
|---|
|
PRELUDE IV (BB_) |
