CS-116R
| Designation | Control Arm |
| Position | FRONT UPPER RH |
| OE No. | 51450-SM1-A02 / 51450-SM1-A03 / 51450-SM4-003 / 51450-SM4-013 / 51450-SM4-023 / 51450-SM4-A01 / 51450-SM4-A02 / 51450-SM4-A03 / 51450-SN7-003 / 51459-SN7-003 / GSJ410 / GSJ424 |
| Length | 306 mm |
| Width | 240 mm |
| Height | 80 mm |
| Net Weight | 1.73 kg |
| CTE No. | DESIGNATION | POSITION | OE NO. | |
|---|---|---|---|---|
 |
CBH01011 | FRONT UPPER ARM INNER | 52393-SM1-A01 52393-SM1-A02 52393-SM4-003 52393-SM4-004 52393-SM4-013 52393-SM4-300 RGX100240 |
|
 |
CBH01021 | FRONT LOWER ARM INNER | 51393-SM4-A01 51393-SN7-003 RBX100451 |
|
 |
CBH01022 | FRONT LOWER ARM INNER | 51393-S0A-004 51393-S0A-014 51393-S1A-E01 51393-SL4-004 51393-SL5-003 51393-SL5-013 51393-SL9-013 51393-SM4-003 51393-SM4-013 51393-SM4-505 51393-SV1-A01 51393-SV1-E01 RBX100431 |
|
 |

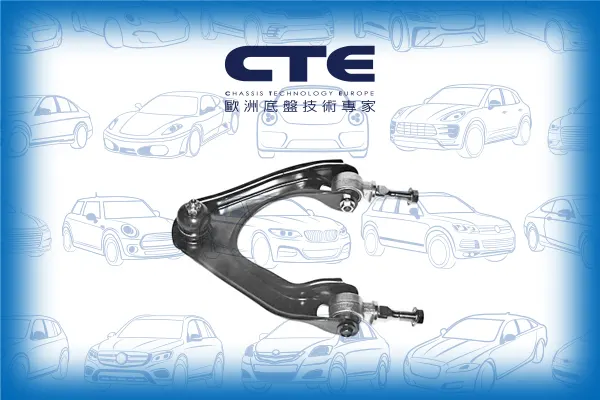

CS-116L | FRONT UPPER LH | 51460-SM1-A02 51460-SM1-A03 51460-SM4-003 51460-SM4-013 51460-SM4-023 51460-SM4-A01 51460-SM4-A02 51460-SM4-A03 51460-SN7-003 51469-SN7-003 GSJ409 GSJ423 |
|
 |
CS-116R | FRONT UPPER RH | 51450-SM1-A02 51450-SM1-A03 51450-SM4-003 51450-SM4-013 51450-SM4-023 51450-SM4-A01 51450-SM4-A02 51450-SM4-A03 51450-SN7-003 51459-SN7-003 GSJ410 GSJ424 |
|
 |

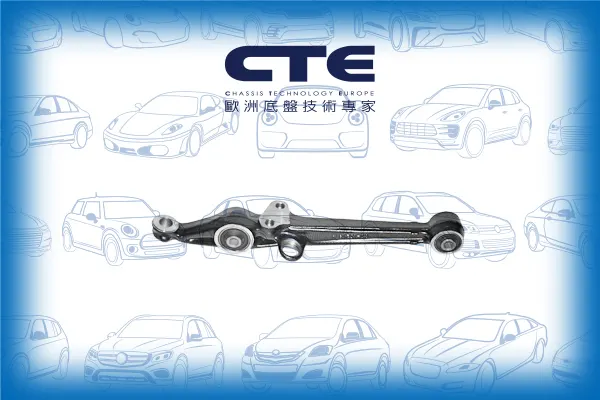

CS-125L | FRONT LOWER LH | 51365-SM4-000 51365-SM4-010 51365-SM4-020 51365-SM4-030 51365-SM4-040 RBJ100720 |
|
 |

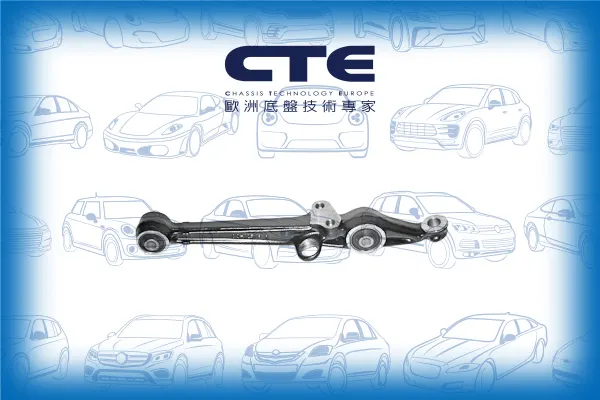

CS-125R | FRONT LOWER RH | 51355-SM4-000 51355-SM4-010 51355-SM4-020 51355-SM4-030 51355-SM4-040 RBJ100690 |
|
 |
CSL01002 | FRONT | 51313-SM4-000 90112-SM4-000 90112-SM4-010 90112-SM4-020 |
|
 |
CSL01003 | REAR (A= 134.5MM) | 52306-SE0-010 52306-SE0-020 52306-SE0-030 52306-SE0-A00 52306-SN7-E01 |
|
 |
CTE01002L | FRONT AXLE LH (C= M14X1.5) | 53560-S1A-E01 53560-S84-A01 53560-SM4-003 53560-SM4-004 53560-SM4-J62 53560-SV4-003 53560-SV4-013 53560-SV7-003 53560-SX0-003 53560-SX0-013 53560-SX4-003 GSJ407 |
|
 |
CTE01002R | FRONT AXLE RH (C= M14X1.5) | 53540-S1A-E01 53540-S84-A01 53540-SM4-003 53540-SM4-004 53540-SM4-J62 53540-SV4-003 53540-SV4-013 53540-SV7-003 53540-SX0-003 53540-SX0-013 53540-SX4-003 GSJ408 |
| Model (Year) |
|---|
|
ACCORD IV (CB) |
| Model (Year) |
|---|
|
600 I (RH) |
