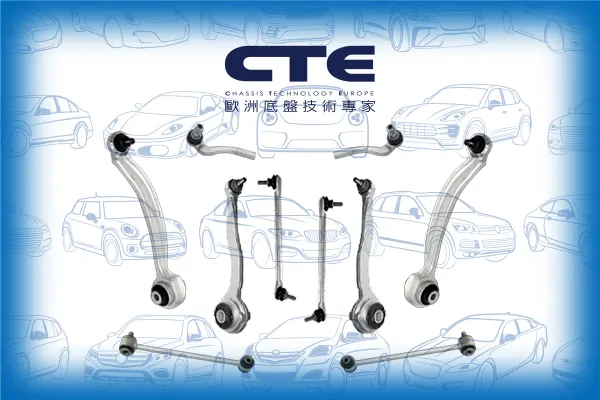

COS21003
| Designation | Repair Kit |
| Position | FRONT |
| OE No. | |
| Length | 495 mm |
| Width | 270 mm |
| Height | 185 mm |
| Net Weight | 9.41 kg |
| CTE No. | DESIGNATION | POSITION | OE NO. | |
|---|---|---|---|---|
 |
CBH21017 | RUBBER BUSHING | FRONT UPPER ARM INNER | 203 333 10 14 |
 |
CBH21018 | RUBBER BUSHING | FRONT LOWER ARM INNER | 211 333 11 14 230 333 06 14 A211 333 11 14 A230 333 06 14 |
 |
CBH21057 | RUBBER BUSHING | REAR AXLE LOWER ARM | |
 |
COS21003 | REPAIR KIT | FRONT | |
 |
COS21006 | REPAIR KIT | FRONT | |
 |
CS-2112L | CONTROL ARM | FRONT UPPER LH | 203 330 01 11 203 330 16 11 203 330 35 11 203 330 39 11 204 330 33 11 204 330 43 11 204 330 87 11 A 203 330 01 11 A 203 330 16 11 A 203 330 35 11 A 203 330 39 11 A 204 330 43 11 A 204 330 87 11 |
 |
CS-2112R | CONTROL ARM | FRONT UPPER RH | 203 330 02 11 203 330 17 11 203 330 36 11 203 330 40 11 204 330 34 11 204 330 44 11 204 330 88 11 A 203 330 02 11 A 203 330 17 11 A 203 330 36 11 A 203 330 40 11 A 204 330 44 11 A 204 330 88 11 |
 |
CS-2167L | CONTROL ARM | REAR AXLE UPPER LH | 204 350 21 06 A204 350 21 06 |
|
CS-2167R | CONTROL ARM | REAR AXLE UPPER RH | 204 350 22 06 A204 350 22 06 |
|
CS-2168L | CONTROL ARM | REAR AXLE LOWER LH | 204 350 05 53 205 350 65 03 A204 350 05 53 A205 350 65 03 |
|
CS-2168R | CONTROL ARM | REAR AXLE LOWER RH | 204 350 06 53 205 350 66 03 A204 350 06 53 A205 350 66 03 |
 |
CS-2169L | CONTROL ARM | REAR AXLE UPPER LH | 204 350 15 06 205 350 61 03 A 205 350 61 03 A204 350 15 06 |
 |
CS-2169R | CONTROL ARM | REAR AXLE UPPER RH | 204 350 16 06 205 350 62 03 A 205 350 62 03 A204 350 16 06 |
|
CS-2170 | CONTROL ARM | REAR AXLE LOWER LH/RH | 204 350 00 29 204 350 27 06 204 352 12 05 205 350 63 03 A204 350 00 29 A204 350 27 06 A204 352 12 05 A205 350 63 03 |
 |
CSL21023L | STABILIZER LINK | REAR LH | 204 320 05 89 A204 320 05 89 |
 |
CSL21023R | STABILIZER LINK | REAR RH | 204 320 04 89 A204 320 04 89 |
 |
CSL21026L | STABILIZER LINK | FRONT LH (A= 306.5MM) | 204 320 17 89 A204 320 17 89 |
 |
CSL21026R | STABILIZER LINK | FRONT RH (A= 306.5MM) | 204 320 18 89 A204 320 18 89 |
 |
CTE21005L | TIE ROD END | FRONT AXLE LH (C= M14X1.5) | 204 330 09 03 A204 330 09 03 |
 |
CTE21005R | TIE ROD END | FRONT AXLE RH (C= M14X1.5) | 204 330 10 03 A204 330 10 03 |
| Model (Year) |
|---|
|
C-CLASS (W204) |
