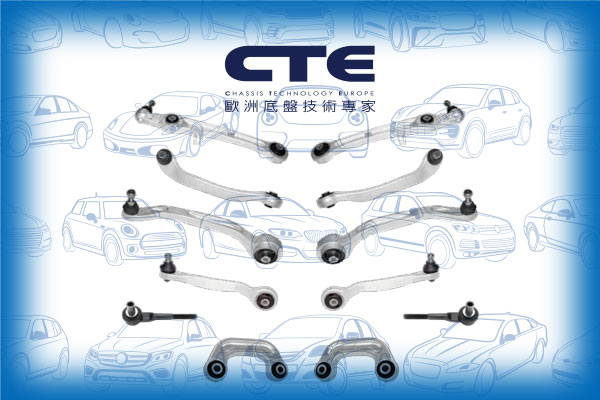

COS19018
| Designation | Repair Kit |
| Position | FRONT |
| OE No. | |
| Length | 480 mm |
| Width | 445 mm |
| Height | 190 mm |
| Net Weight | 12.67 kg |
| CTE No. | DESIGNATION | POSITION | OE NO. | |
|---|---|---|---|---|
 |

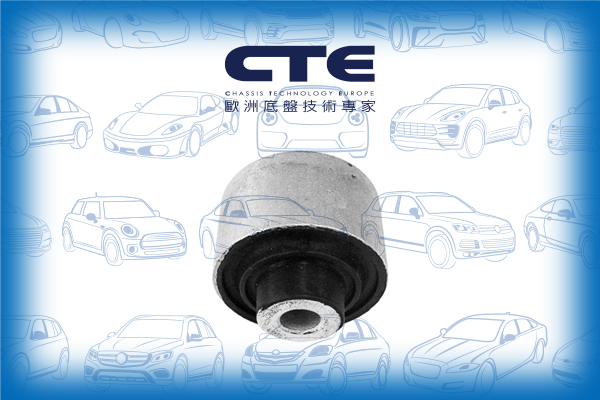

CBH19015 | FRONT LOWER ARM INNER | 4E0 407 182B 4E0 407 182C |
|
 |

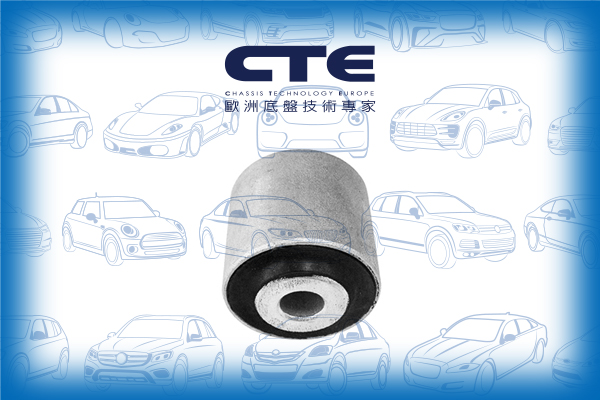

CBH19016 | FRONT LOWER ARM OUTER | 4E0 407 181B 4E0 407 181D 4GD 407 181 |
|
 |

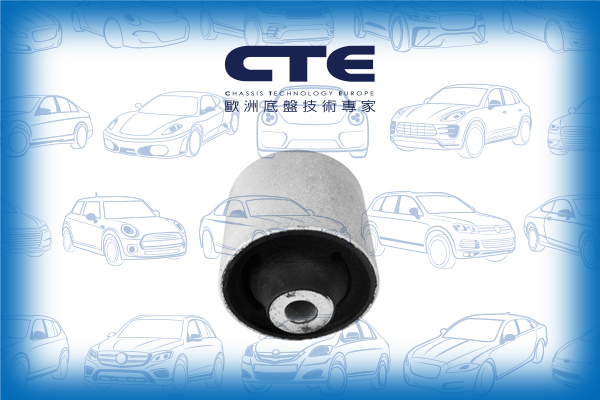

CBH19017 | FRONT LOWER ARM INNER | 4F0 407 183A 4F0 407 183B 4F0 407 183C 4F0 407 183E |
|
 |
CBH19018 | FRONT UPPER ARM INNER | 8D0 407 151A 8D0 407 151B 8D0 407 151C 8D0 407 515A 8D0 407 515B 8D0 407 515C |
|
 |
COS19018 | FRONT | ||
 |

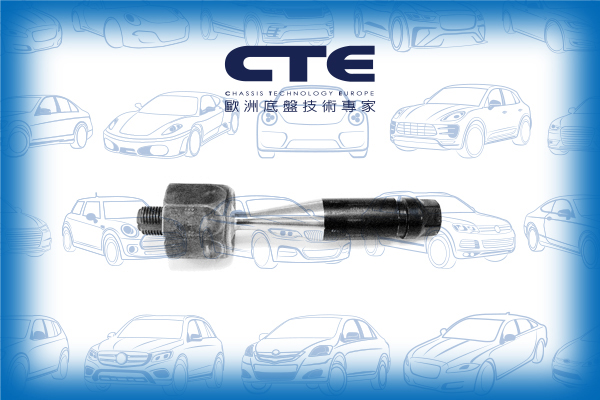

CRE19002 | D= M14X1.5 , C= M16X1.5 | 4F0 422 821 |
|
 |

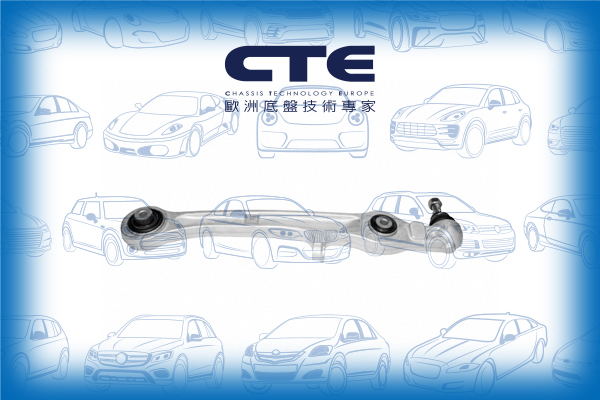

CS-1916 | FRONT LOWER LH/ RH | 4F0 407 151 4F0 407 151A 4F0 407 152 L4F0 407 151A |
|
 |

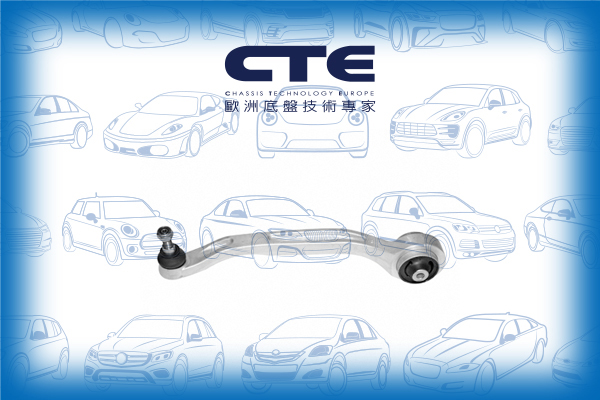

CS-1917L | FRONT LOWER LH | 4F0 407 693 4F0 407 693B 4F0 407 693C 4F0 407 693D 4F0 407 693F 4F0 407 693G 4F0 407 693H 4F0 407 693J |
|
 |

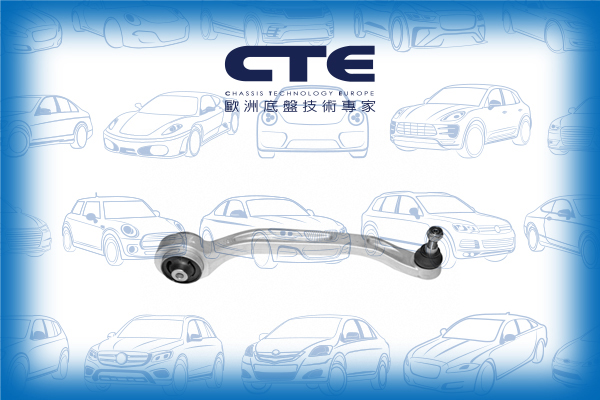

CS-1917R | FRONT LOWER RH | 4F0 407 694 4F0 407 694B 4F0 407 694C 4F0 407 694D 4F0 407 694F 4F0 407 694G 4F0 407 694H 4F0 407 694J |
|
 |

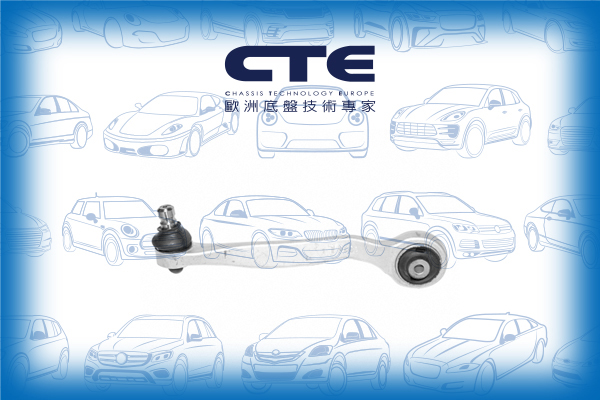

CS-1918L | FRONT UPPER LH | 4E0 407 509B 4E0 407 509E 4E0 407 509G 4E0 407 509K |
|
 |

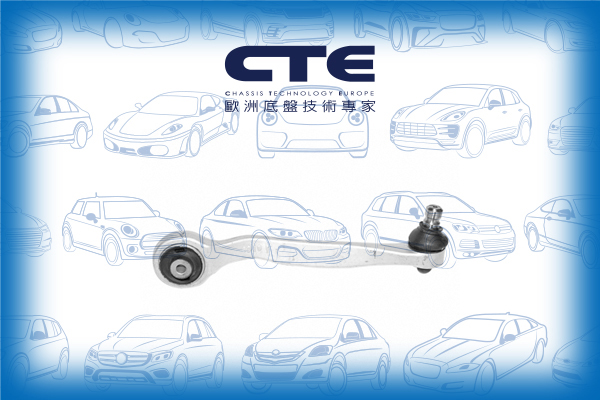

CS-1918R | FRONT UPPER RH | 4E0 407 510B 4E0 407 510E 4E0 407 510G 4E0 407 510K |
|
 |

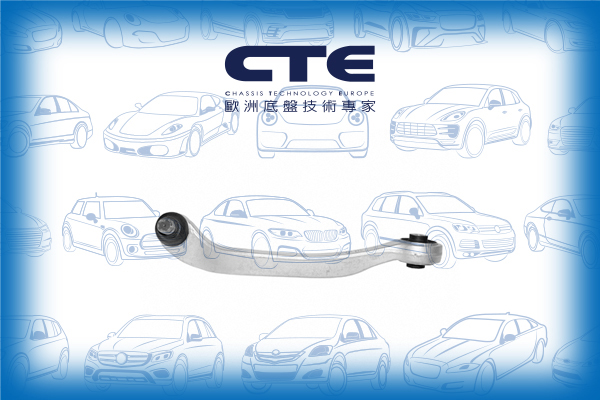

CS-1919L | FRONT UPPER LH | 4E0 407 505B 4E0 407 505E |
|
 |

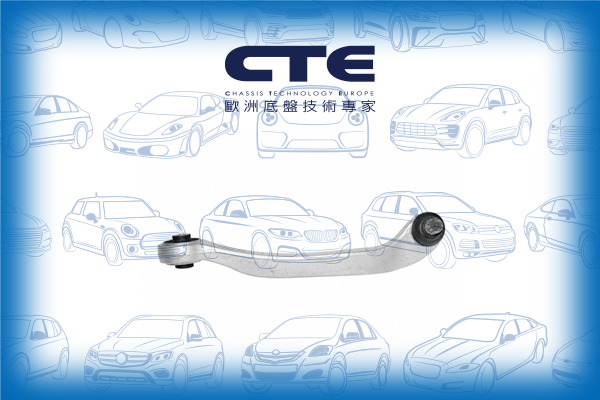

CS-1919R | FRONT UPPER RH | 4E0 407 506B 4E0 407 506E |
|
 |

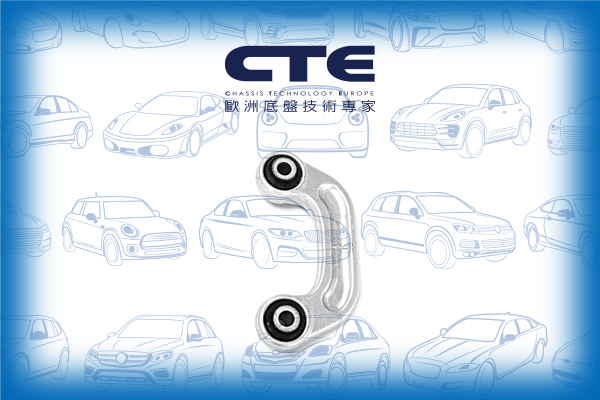

CSL19013 | FRONT | 4E0 411 317C 4E0 411 317D 4E0 411 317E 4E0 411 317F |
|
 |
CTE19002 | FRONT AXLE LH/ RH (C= M14X1.5) | 4B0 419 811G 4B0 419 811Q 4D0 419 811J 4F0 419 811C 4F0 419 811D 4F0 498 811 4F0 498 811A 4F0 498 811A SK 8B0 419 811G 8E0 419 811 |
| Model (Year) |
|---|
|
A6 Allroad C6 (4FH) A6 C6 (4F2) | A6 / S6 A6 C6 Avant (4F5) |
