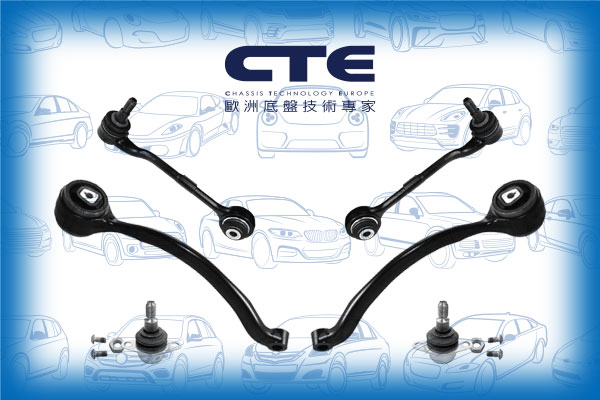

COS09006
| Designation | Repair Kit |
| Position | FRONT |
| OE No. | 2 405 863 / 31 12 2 405 863 / 31 12 6 768 983 / 31 12 6 768 984 / 31 12 6 768 988 / 31 12 6 768 989 / 6 768 983 / 6 768 984 / 6 768 988 / 6 768 989 |
| Length | 495 mm |
| Width | 270 mm |
| Height | 185 mm |
| Net Weight | 9.99 kg |
| CTE No. | DESIGNATION | POSITION | OE NO. | |
|---|---|---|---|---|
 |
CBH09016 | FRONT UPPER ARM INNER | 31 12 0 302 754 31 12 0 304 308 31 12 0 393 540 31 12 0 393 540 SK1 31 12 0 398 350 31 12 6 763 719 31 12 6 765 991 31 12 6 769 719 |
|
 |
CBH09019 | FRONT LOWER ARM INNER | 31 12 6 765 597 31 12 6 774 405 6 765 597 6 774 405 |
|
 |
CBH09030 | REAR ARM | 33 32 6 763 473 33 32 6 765 425 33 32 6 765 535 33 32 6 777 980 33 32 6 782 237 33 32 6 782 238 |
|
 |
CBH09031 | REAR ARM | 33 32 6 765 425 33 32 6 765 534 33 32 6 782 237 33 32 6 782 238 |
|
 |
CBH09054 | REAR AXLE LH/RH | 2406290 33 32 2 406 290 33 32 6 763 471 6763471 |
|
 |

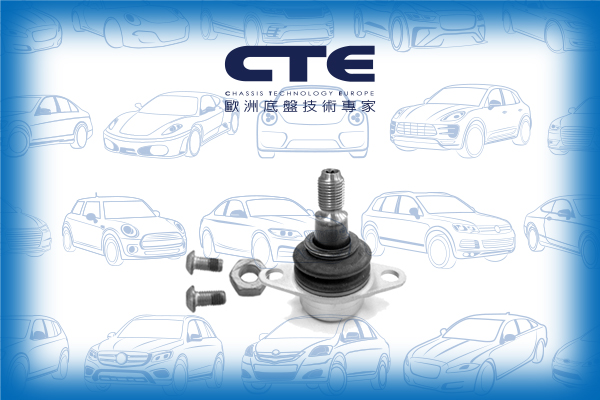

CBJ09010A | FRONT UPPER LH/ RH | 31 12 6 768 988 6 768 988 |
|
 |
COS09006 | FRONT | 2 405 863 31 12 2 405 863 31 12 6 768 983 31 12 6 768 984 31 12 6 768 988 31 12 6 768 989 6 768 983 6 768 984 6 768 988 6 768 989 |
|
 |
CRE09010 | FRONT AXLE LH/RH | 32 21 6 762 243 32 21 6 762 244 |
|
 |
CS-931L | FRONT UPPER LH | 2 405 861 31 12 2 405 861 31 12 2 409 599 31 12 4 036 269 31 12 6 763 703 31 12 6 763 707 31 12 6 769 797 31 12 6 769 801 4 036 269 6 763 703 6 763 707 6 769 797 6 769 801 |
|
 |
CS-931R | FRONT UPPER RH | 2 405 862 31 12 2 405 862 31 12 2 409 598 31 12 4 036 270 31 12 6 763 704 31 12 6 763 708 31 12 6 769 798 31 12 6 769 802 4 036 270 6 763 704 6 763 708 6 769 798 6 769 802 |
|
 |
CS-942L | REAR AXLE LH | 2 406 289 33 32 2 406 289 33 32 6 765 425 33 32 6 782 237 6 765 425 6 782 237 |
|
 |
CS-942R | REAR AXLE RH | 2 406 288 33 32 2 406 288 33 32 6 765 425 33 32 6 782 238 6 765 425 6 782 238 |
|
 |
CS-943 | REAR AXLE LH/ RH | 2406290 33 32 2 406 290 33 32 2 409 892 33 32 6 763 471 6763471 |
|
 |

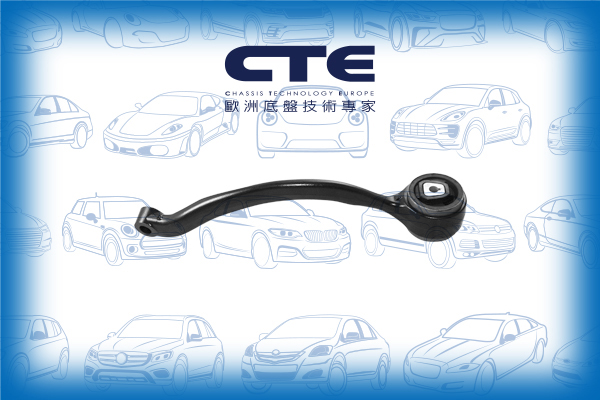

CS-952L | FRONT UPPER LH | 31 12 6 768 983 6 768 983 |
|
 |

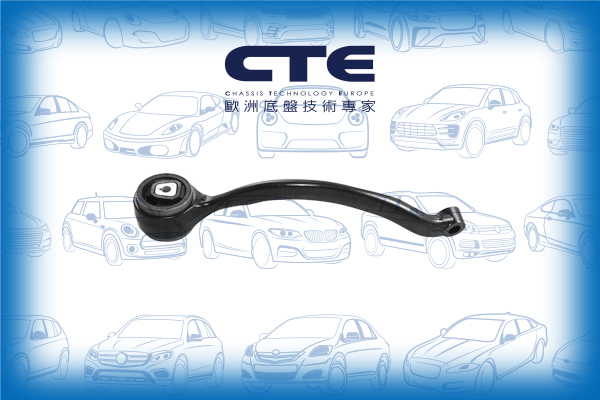

CS-952R | FRONT UPPER RH | 31 12 6 768 984 6 768 984 |
|
 |

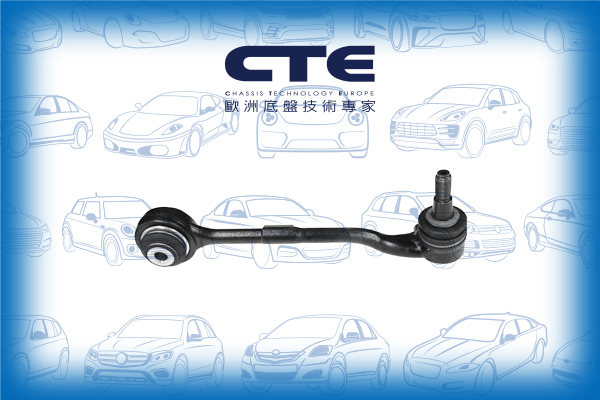

CS-954 | FRONT LOWER LH/RH | 2 405 863 31 12 2 405 863 31 12 6 768 989 6 768 989 |
|
 |

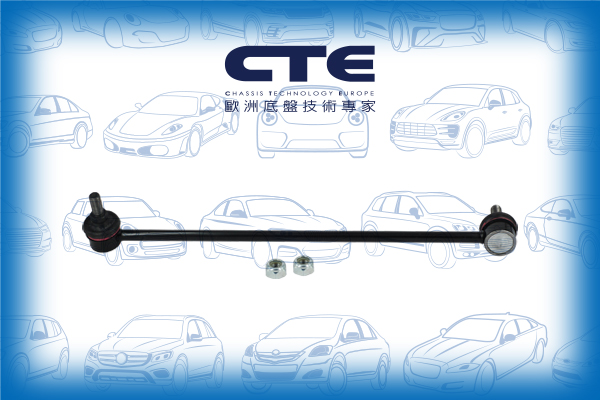

CSL09030L | FRONT AXLE LH | 31 35 6 768 771 6 768 771 |
|
 |

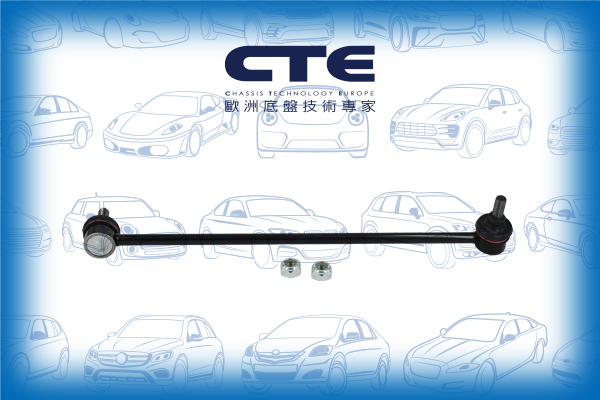

CSL09030R | FRONT AXLE RH | 31 35 6 768 772 6 768 772 |
| Model (Year) |
|---|
|
3 (E90) 3 Coupe (E92) 3 Touring (E91) X1 (E84) |
| Model (Year) |
|---|
|
X1 (E84) |
