Repair Kit/BMW/1 (E81)/1 (E87)/1 Convertible (E88)/1 Coupe (E82)/3 (E90)/3 Convertible (E93)/3 Coupe (E92)/3 Touring (E91)/X1 (E84)

COS09005

Qty
out of stock
Designation Repair Kit
Position FRONT
OE No. 2 405 859 / 2 405 860 / 2 405 861 / 2 405 862 / 31 12 2 405 859 / 31 12 2 405 860 / 31 12 2 405 861 / 31 12 2 405 862 / 31 12 2 409 598 / 31 12 2 409 599 / 31 12 4 036 269 / 31 12 4 036 270 / 31 12 6 763 699 / 31 12 6 763 700 / 31 12 6 763 703 / 31 12 6 763 704 / 31 12 6 763 707 / 31 12 6
Length 495 mm
Width 270 mm
Height 185 mm
Net Weight 6.96 kg
CTE No. DESIGNATION POSITION OE NO.
CBH09016 RUBBER BUSHING FRONT UPPER ARM INNER
31 12 0 302 754
31 12 0 304 308
31 12 0 393 540
31 12 0 393 540 SK1
31 12 0 398 350
31 12 6 763 719
31 12 6 765 991
31 12 6 769 719

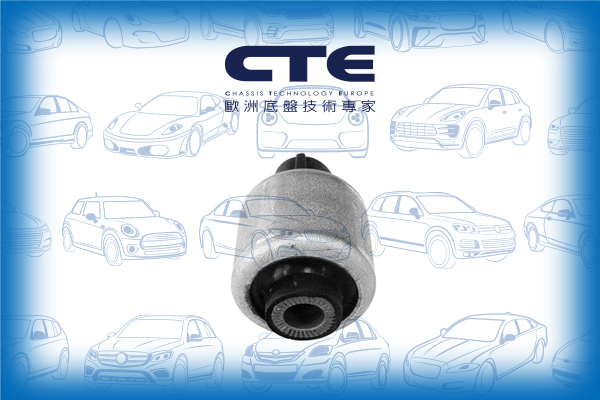

CBH09019 RUBBER BUSHING FRONT LOWER ARM INNER
31 12 6 765 597
31 12 6 774 405
6 765 597
6 774 405

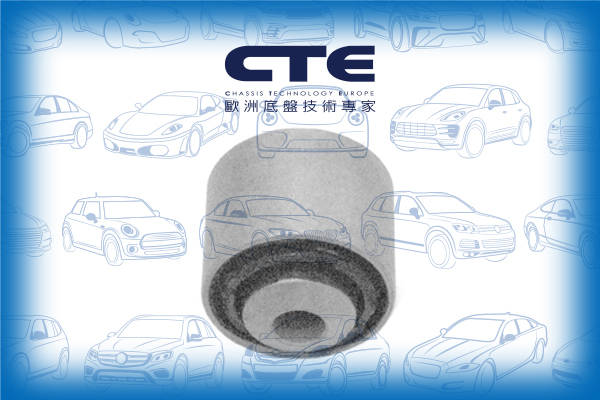

CBH09030 RUBBER BUSHING REAR ARM

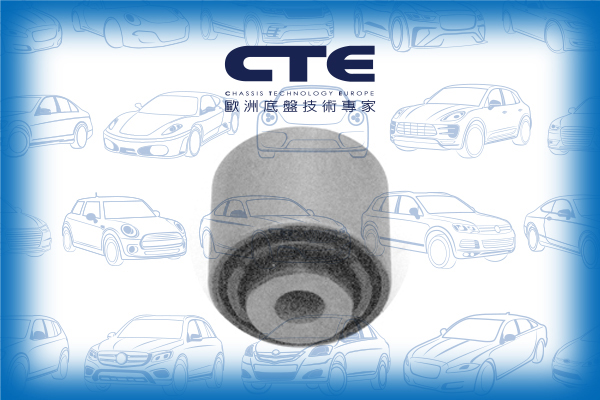

CBH09031 RUBBER BUSHING REAR ARM

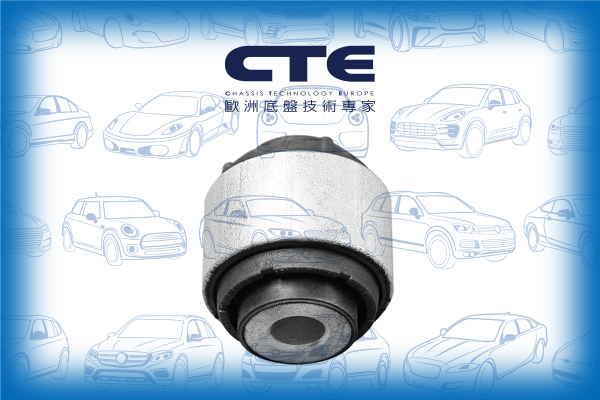

CBH09054 RUBBER BUSHING REAR AXLE LH/RH
2406290
33 32 2 406 290
33 32 6 763 471
6763471
COS09005 REPAIR KIT FRONT
2 405 859
2 405 860
2 405 861
2 405 862
31 12 2 405 859
31 12 2 405 860
31 12 2 405 861
31 12 2 405 862
31 12 2 409 598
31 12 2 409 599
31 12 4 036 269
31 12 4 036 270
31 12 6 763 699
31 12 6 763 700
31 12 6 763 703
31 12 6 763 704
31 12 6 763 707
31 12 6
CRE09010 RACK END FRONT AXLE LH/RH
32 21 6 762 243
32 21 6 762 244
CRE09013 RACK END FRONT AXLE LH/RH
32 10 6 765 235
32 10 6 765 236
32 10 6 765 238
6 765 235
6 765 236
6 765 238
CS-929L CONTROL ARM FRONT LOWER LH
2 405 859
31 12 2 405 859
31 12 6 763 699
31 12 6 769 793
31 12 6 770 849
31 12 6 786 203
6 763 699
6 769 793
6 770 849
6 786 203
CS-929R CONTROL ARM FRONT LOWER RH
2 405 860
31 12 2 405 860
31 12 6 763 700
31 12 6 769 794
31 12 6 770 850
31 12 6 786 204
6 763 700
6 769 794
6 770 850
6 786 204
CS-931L CONTROL ARM FRONT UPPER LH
2 405 861
31 12 2 405 861
31 12 2 409 599
31 12 4 036 269
31 12 6 763 703
31 12 6 763 707
31 12 6 769 797
31 12 6 769 801
4 036 269
6 763 703
6 763 707
6 769 797
6 769 801
CS-931R CONTROL ARM FRONT UPPER RH
2 405 862
31 12 2 405 862
31 12 2 409 598
31 12 4 036 270
31 12 6 763 704
31 12 6 763 708
31 12 6 769 798
31 12 6 769 802
4 036 270
6 763 704
6 763 708
6 769 798
6 769 802
CS-942L CONTROL ARM REAR AXLE LH
2 406 289
33 32 2 406 289
33 32 6 765 425
33 32 6 782 237
6 765 425
6 782 237
CS-942R CONTROL ARM REAR AXLE RH
2 406 288
33 32 2 406 288
33 32 6 765 425
33 32 6 782 238
6 765 425
6 782 238
CS-943 CONTROL ARM REAR AXLE LH/ RH
2406290
33 32 2 406 290
33 32 2 409 892
33 32 6 763 471
6763471
CSL09023L STABILIZER LINK FRONT LH (A= 290MM)
31 35 6 765 933
6 765 933
CSL09023R STABILIZER LINK FRONT RH (A= 290MM)
31 35 6 765 934
6 765 934
CSR09014L SIDE ROD FRONT AXLE LH
32 10 6 765 235
6 765 235
CSR09014R SIDE ROD FRONT AXLE RH
32 10 6 765 236
6 765 236
CTE09009L TIE ROD END FRONT AXLE LH
32 10 6 765 089
32 10 6 767 781
6 767 781
CTE09009R TIE ROD END FRONT AXLE RH
32 10 6 765 090
32 10 6 767 782
6 767 782
Model (Year)
1 (E81)
1 (E87)
1 Convertible (E88)
1 Coupe (E82)
3 (E90)
3 Convertible (E93)
3 Coupe (E92)
3 Touring (E91)
X1 (E84)
