CBH22015R
| Designation | Rubber Bushing |
| Position | FRONT LOWER ARM RH REAR |
| OE No. | 1401239480 / 1497407080 / 3521.N9 / 3521.S0 / SU001-A0993 |
| Length | 131 mm |
| Width | 84 mm |
| Height | 124 mm |
| Net Weight | 1.2 kg |
FIAT SCUDO Platform
Chassis (270,272)
ULYSSE (179) year from 10.2010, CITROEN JUMPY II (VF7)
Van TYPE DISPATCH,JUMPY year to 12.2011, JUMPY II Van year from 03.2009 to 03.2011, PEUGEOT EXPERT Platform
Chassis year from 06.2007 TYPE Expert,Expert Tepee
Chassis (270,272)
ULYSSE (179) year from 10.2010, CITROEN JUMPY II (VF7)
Van TYPE DISPATCH,JUMPY year to 12.2011, JUMPY II Van year from 03.2009 to 03.2011, PEUGEOT EXPERT Platform
Chassis year from 06.2007 TYPE Expert,Expert Tepee
| CTE No. | DESIGNATION | POSITION | OE NO. | |
|---|---|---|---|---|
 |
CBH22015L | FRONT LOWER ARM LH REAR | 1401239580 1497408080 3520.R8 3520.V8 SU001-A0992 |
|
 |
CBH22015R | FRONT LOWER ARM RH REAR | 1401239480 1497407080 3521.N9 3521.S0 SU001-A0993 |
|
 |
CBH22016 | FRONT LOWER ARM INNER | 1401239480 1401239580 1497407080 1497408080 3520.R8 3520.V8 3520.W4 3521.N9 3521.S0 3521.S7 93501487 93501488 SU001-A0992 SU001-A0993 |
|
 |

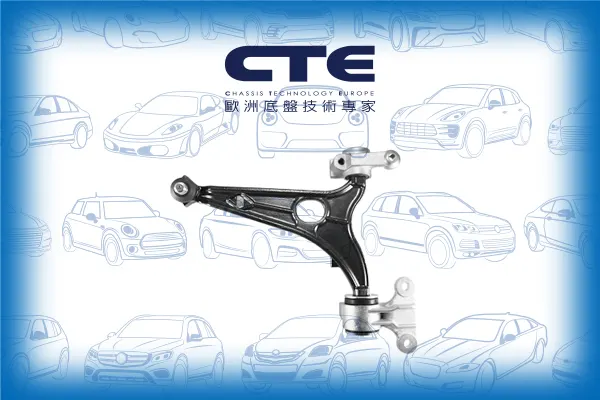

CS-2216L | FRONT LOWER LH | 1401239580 1497408080 1610940680 3520.R8 3520.V8 SU001-A0992 |
|
 |

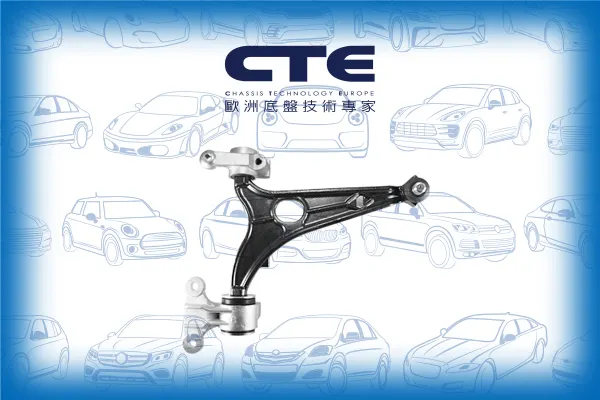

CS-2216R | FRONT LOWER RH | 1401239480 1497407080 1610940580 3521.N9 3521.S0 SU001-A0993 |
| Model (Year) |
|---|
|
C8 (EA_, EB_) C8 Van (EA_, EB_) JUMPY II (VF7) | DISPATCH JUMPY II Platform/Chassis | DISPATCH JUMPY II Van | DISPATCH |
| Model (Year) |
|---|
|
SCUDO Bus (270_, 272_) SCUDO Platform/Chassis (270_, 272_) SCUDO Van (270_, 272_) ULYSSE (179_) ULYSSE (220_) |
| Model (Year) |
|---|
|
PHEDRA (179_) |
| Model (Year) |
|---|
|
807 (EB_) 807 Van (EB_) EXPERT Platform/Chassis EXPERT TEPEE (VF3X_) EXPERT Van (VF3A_, VF3U_, VF3X_) |
| Model (Year) |
|---|
|
PROACE Platform/Chassis (MDZ_) PROACE Van (MDX_) PROACE Van (MDZ_) |
