CBH03066
| Designation | Rubber Bushing |
| Position | REAR ARM INNER |
| OE No. | 1011363 / 1016439 / 96FB-5K-653CA |
| Length | 70 mm |
| Width | 63.5 mm |
| Height | 63.5 mm |
| Net Weight | 0.39 kg |
| CTE No. | DESIGNATION | POSITION | OE NO. | |
|---|---|---|---|---|
 |
CBH03021 | FRONT LOWER ARM REAR | 1035929 89FB-3A262-AC 91AB-3063-AA 91AB-3A262-AA |
|
 |
CBH03022 | FRONT LOWER ARM INNER | 1000445 1829508 89FB-3063-AD ME89FB-3063-AD |
|
 |
CBH03066 | REAR ARM INNER | 1011363 1016439 96FB-5K-653CA |
|
 |
CBH03070 | FRONT LOWER ARM INNER | ||
 |
CBJ03004A | FRONT LOWER LH/ RH | 1030025 1047797 1679398 94FB-3B376-AA 94FB-3B376-AB ME96FB-3395-AA |
|
 |
CRE03048 | D= 1/2"-20G, C= M14X1.5 | 1659374 4048739 6639188 6790700 89FB-3L555-BA 91FB-3L519-AA 92FB-3L519-AA XS5C-3L519-AA |
|
 |

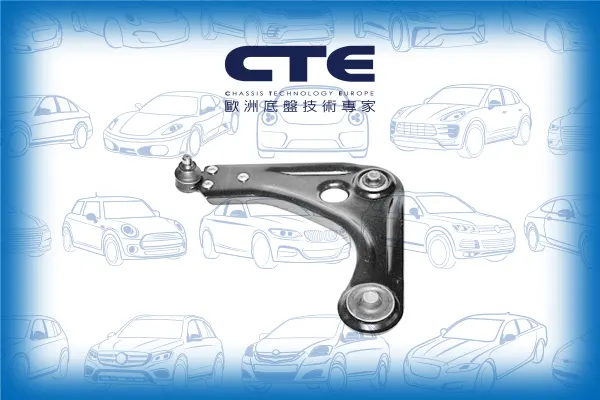

CS-336L | FRONT LOWER LH (W/ POWER STEERING) | 1028443 1032101 1046455 1046459 1046502 1063986 1093986 1448622 1448622S1 97KB-3051-AB 97KB3051AC 97KB3051AD 97KB-3051-CC 97KB3051EB 97KB3051EC |
|
 |
CS-336R | FRONT LOWER RH (W/ POWER STEERING) | 1012404 1028438 1032099 1046444 1046447 1046501 1063985 1448621 1448621S1 97KB-3042-AB 97KB3042AC 97KB3042AD 97KB-3042-CC 97KB3042EB 97KB3042EC |
|
 |
CS-337L | FRONT LOWER LH (W/O POWER STEERING) | 1028447 1029298 1032102 1039806 1046458 1046461 1063988 1063988S1 1070340 1093988 1111412 97KB3051BB 97KB3051BC 97KB3051BD 97KB3051DA 97KB3051DB 97KB3051DC 97KB3051FB |
|
 |

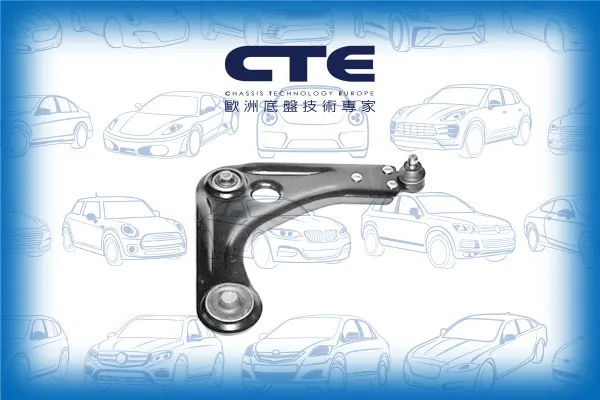

CS-337R | FRONT LOWER RH (W/O POWER STEERING) | 1029281 1032100 1035506 1046445 1046511 1063987 1063987S1 1070339 1111410 97KB3042BC 97KB3042BD 97KB3042DA 97KB3042DB 97KB3042FB 97KB3486GA |
|
 |
CSL11001 | FRONT (A= 238MM) | 1661237 96FB-3B-438AB |
| Model (Year) |
|---|
|
COURIER Pickup FIESTA IV (JA_, JB_) KA (RB_) PUMA (EC_) |
| Model (Year) |
|---|
|
121 III (JASM, JBSM) |
