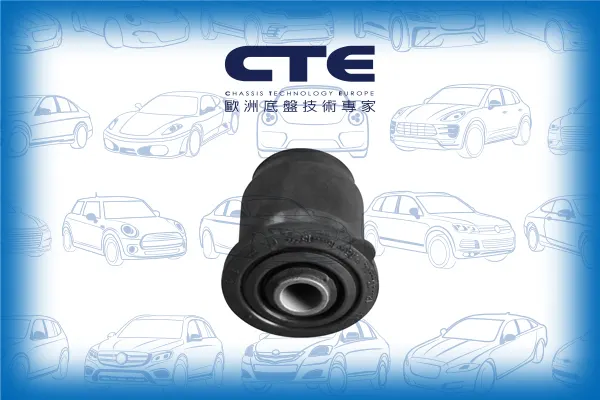

CBH03016
| Designation | Rubber Bushing |
| Position | FRONT LOWER ARM INNER |
| OE No. | BC1D-34-470 / BC1D-34-470A |
| Length | 47.5 mm |
| Width | 47.5 mm |
| Height | 57 mm |
| Net Weight | 0.15 kg |
| CTE No. | DESIGNATION | POSITION | OE NO. | |
|---|---|---|---|---|
 |
CBH03016 | FRONT LOWER ARM INNER | BC1D-34-470 BC1D-34-470A |
|
 |
CBJ03011A | FRONT LOWER LH/ RH | B01A-34-550 B01A-34-550A B455-34-091 B530-33-020A B530-33-020B B530-33-020E B530-33-030A B530-33-030B B530-33-030D B530-33-030E B531-33-020A B531-33-020B B531-33-020D B531-33-030A B531-33-030B B531-33-030D B7DA34550 BTA34550 BTDA-34-550 BTDA-34-5509A BTDA |
|
 |

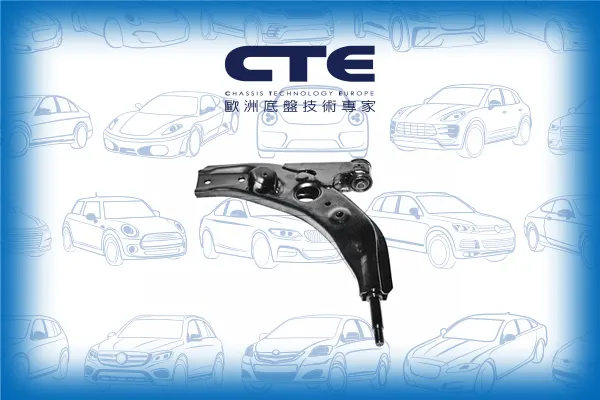

CS-313L | FRONT LOWER LH | B01A-34-350D B01A-34-350E B02B-34-350D B02B-34-350E BC5S-34-350B BC5S-34-350C BC6C-34-350 BC6C-34-350B BC6C-34-350C BE7B-34-350 BE7B-34-350A XH423397BA |
|
 |

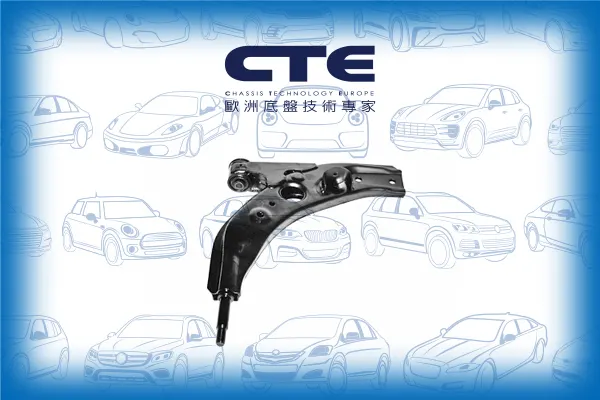

CS-313R | FRONT LOWER RH | B01A-34-300D B01A-34-300E B02B-34-300D B02B-34-300E BC5S-34-300B BC5S-34-300C BC6C-34-300 BC6C-34-300B BC6C-34-300C BE7B-34-300 BE7B-34-300A |
|
 |
CSL03004L | FRONT LH (A= 104MM) | 3410592 GA2A-34-170 GA2A-34-170A |
|
 |
CSL03004R | FRONT RH (A= 104MM) | 3410591 GA2A-34-150 GA2A-34-150A |
|
 |
CSL03016 | REAR (A= 250MM) | BC1D-28-170 BC1D-28-170A E112-34-150 |
|
 |
CSL03022 | FRONT (A= 55MM) | EA03-34-170 EA03-34-170A |
|
 |
CTE03007 | FRONT AXLE LH/ RH (C= M12X1.25) | 8AB2-32-280 B455-32-280 |
| Model (Year) |
|---|
|
323 C V (BA) | FAMILIA 323 P V (BA) | FAMILIA 323 S V (BA) | FAMILIA |
