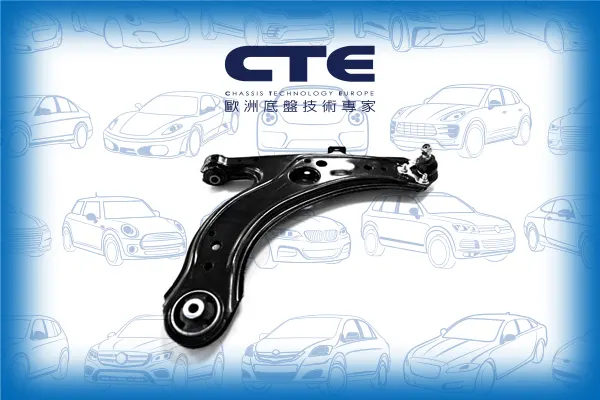

CS-2020R
| Designation | Control Arm |
| Position | FRONT LOWER RH |
| OE No. | 1J0 407 151A / 1J0 407 151A S2 / 1J0 407 151B / 1J0 407 151B S2 / 1J0 407 151C / 1J0 407 151C S2 / 1J0 407 366A / 1J0 407 366B / 1J0 407 366C / 1J0 407 366D / CS-2009+CBJ19008RA |
| Length | 371.6 mm |
| Width | 466 mm |
| Height | 92 mm |
| Net Weight | 3.6 kg |
VW NEW BEETLE (9C1, 1C1) Construction Year from 08.2005 to 05.2007, from 04.1999, from 05.2001 to 04.2005, VW NEW BEETLE Convertible (1Y7) Construction Year from 06.2003, from 08.2005 to 05.2007
| CTE No. | DESIGNATION | POSITION | OE NO. | |
|---|---|---|---|---|
 |
CBH20006 | FRONT LOWER ARM REAR | 180 407 181 1J0 407 181 1J0 407 181A L1J0 407 181 |
|
 |
CBH20008 | FRONT LOWER ARM INNER | 180 407 182 191 407 182 1J0 407 182 357 407 182 357 407 182F |
|
 |

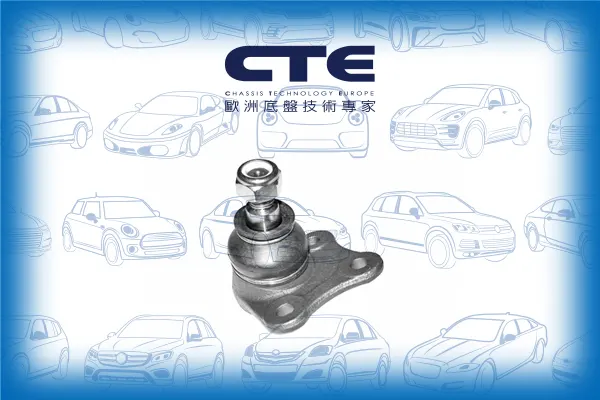

CBJ19008L | FRONT LOWER LH | 1J0 407 365 1J0 407 365A 1J0 407 365B 1J0 407 365C 1J0 407 365D 1J0 407 365H 1J0 407 365J 8Z0 407 365A |
|
 |

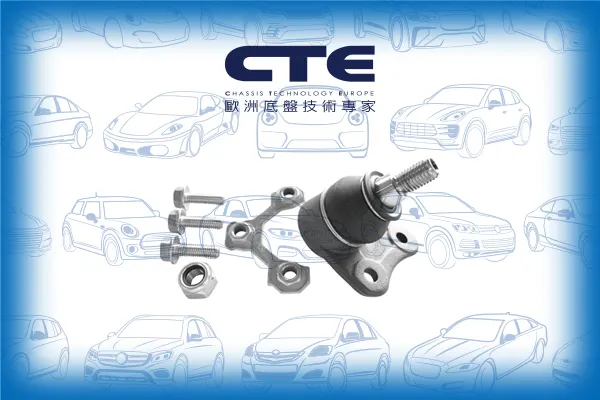

CBJ19008LA | FRONT LOWER LH | 1J0 407 365 1J0 407 365A 1J0 407 365B 1J0 407 365C 1J0 407 365D 1J0 407 365H 1J0 407 365J 8Z0 407 365A |
|
 |

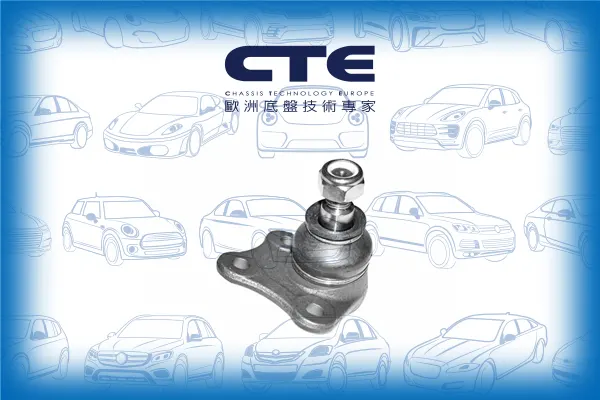

CBJ19008R | FRONT LOWER RH | 1J0 407 366 1J0 407 366A 1J0 407 366B 1J0 407 366C 1J0 407 366D 1J0 407 366H 1J0 407 366J 8Z0 407 366A |
|
 |

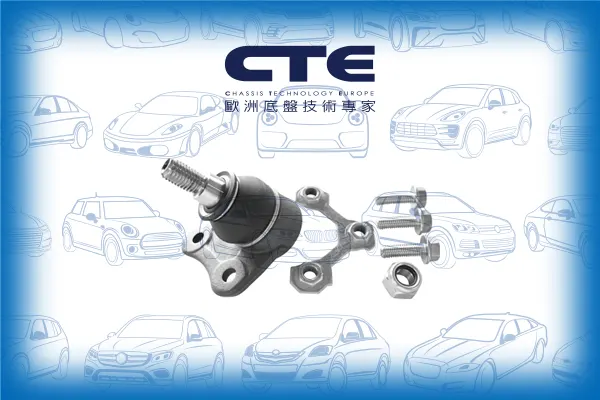

CBJ19008RA | FRONT LOWER RH | 1J0 407 366 1J0 407 366A 1J0 407 366B 1J0 407 366C 1J0 407 366D 1J0 407 366H 1J0 407 366J 8Z0 407 366A |
|
 |
CRE20012 | D= M14X1.5 , C= M16X1.5 | 1J0 422 807 1J0 422 807A 1J0 422 807B 1J0 422 807E 1J0 422 821B |
|
 |

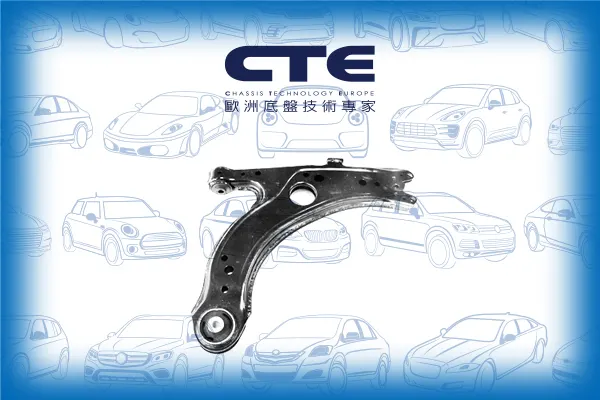

CS-2009 | FRONT LOWER LH/ RH | 1J0 407 151 1J0 407 151A 1J0 407 151B 1J0 407 151C 1J0 407 353 |
|
 |

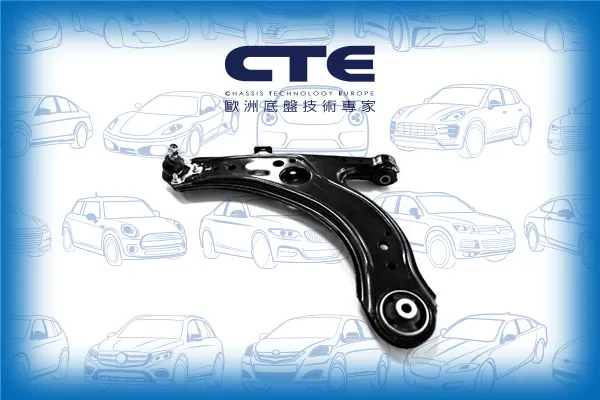

CS-2020L | FRONT LOWER LH | 1J0 407 151A 1J0 407 151A S1 1J0 407 151B 1J0 407 151B S1 1J0 407 151C 1J0 407 151C S1 1J0 407 365A 1J0 407 365B 1J0 407 365C 1J0 407 365D CS-2009+CBJ19008LA |
|
 |
CS-2020R | FRONT LOWER RH | 1J0 407 151A 1J0 407 151A S2 1J0 407 151B 1J0 407 151B S2 1J0 407 151C 1J0 407 151C S2 1J0 407 366A 1J0 407 366B 1J0 407 366C 1J0 407 366D CS-2009+CBJ19008RA |
|
 |
CSL19019L | FRONT AXLE LH | 1J0 411 315D |
|
|
CSL19019R | FRONT AXLE RH | 1J0 411 316D |
|
 |

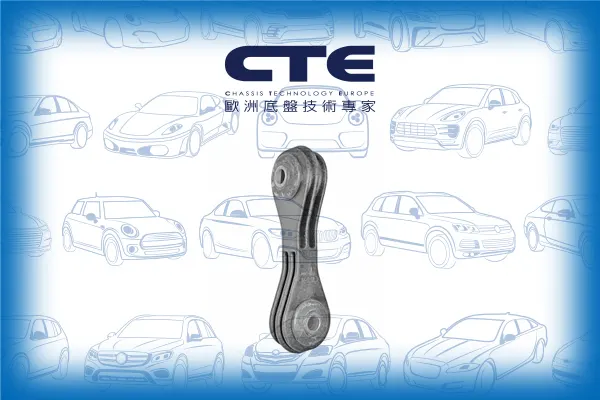

CSL20013 | FRONT (A= 105.5MM) | 1J0 411 315H 1J0 411 315K |
|
 |

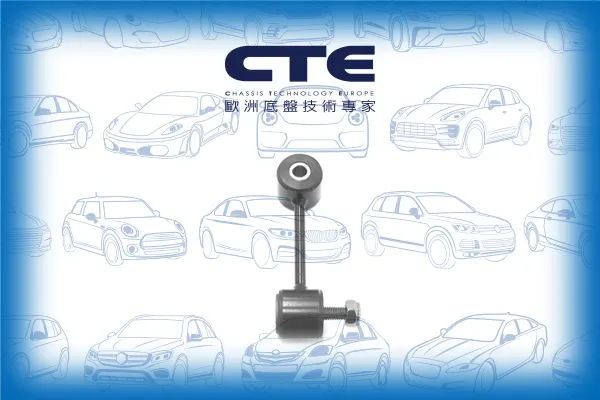

CSL20017 | FRONT (A= 105MM) | 1J0 411 315 1J0 411 315B 1J0 411 315C 1J0 411 315E 1J0 411 315G 1J0 411 315J 1JD 411 315 |
|
 |

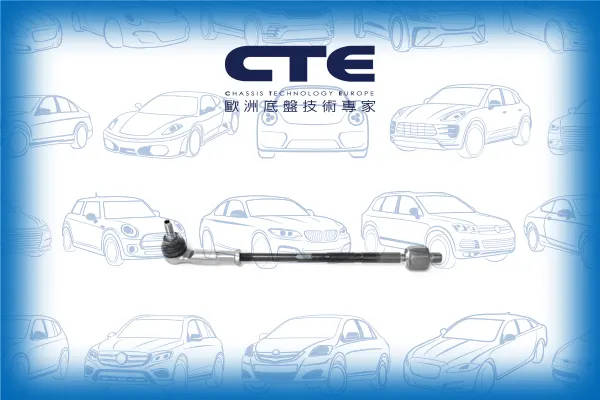

CSR20002L | FRONT AXLE LH | 1J0 422 803B 1J0 422 803H 1JD 422 803 |
|
 |

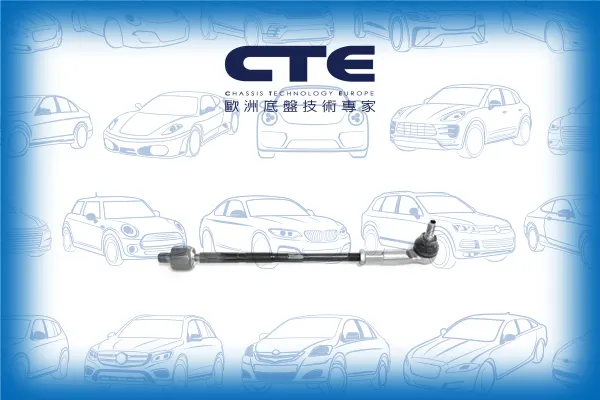

CSR20002R | FRONT AXLE RH | 1J0 422 804B 1J0 422 804H 1JD 422 804 |
|
 |

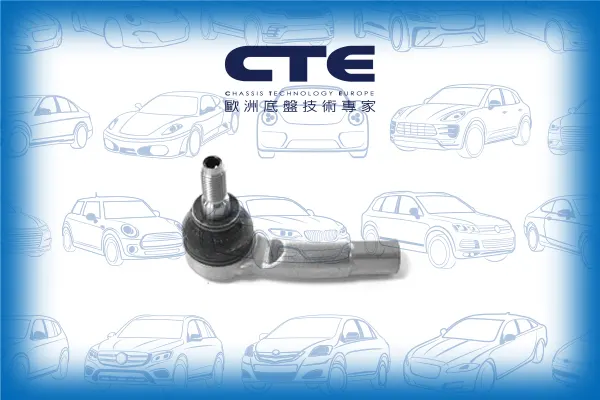

CTE20005L | FRONT AXLE LH (C= M14X1.5) | ||
 |

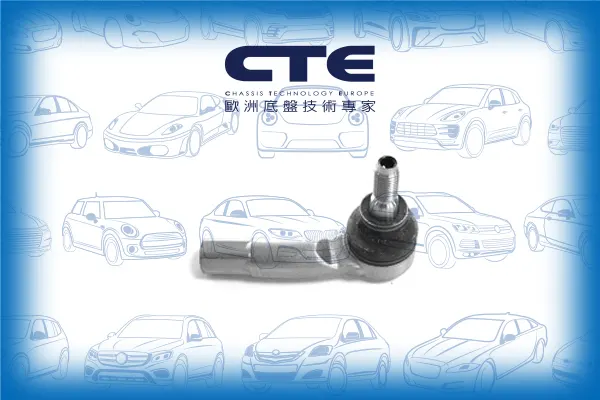

CTE20005R | FRONT AXLE RH (C= M14X1.5) |
| Model (Year) |
|---|
|
A3 (8L1) | A3 / S3 |
| Model (Year) |
|---|
|
LEON (1M1) TOLEDO II (1M2) |
| Model (Year) |
|---|
|
OCTAVIA I (1U2) OCTAVIA I Combi (1U5) OCTAVIA I Estate Van (1U5) |
| Model (Year) |
|---|
|
BORA I (1J2) BORA I (1J2) | JETTA IV BORA Variant (1J6) | JETTA IV GOLF IV (1J1) GOLF IV Van (1J1) GOLF IV Variant (1J5) | JETTA GOLF VAN IV Variant (1J5) NEW BEETLE (9C1, 1C1) NEW BEETLE Convertible (1Y7) |
